Architecture Overview

This document provides a comprehensive overview of the ACS architecture, including system context, component design, request processing, startup behavior, and infrastructure dependencies.

1. System Context

ACS is the central TR-069 Auto Configuration Server. It connects CPE devices (via TR-069, MQTT, and USP protocols) with external applications (via SOAP and REST APIs).

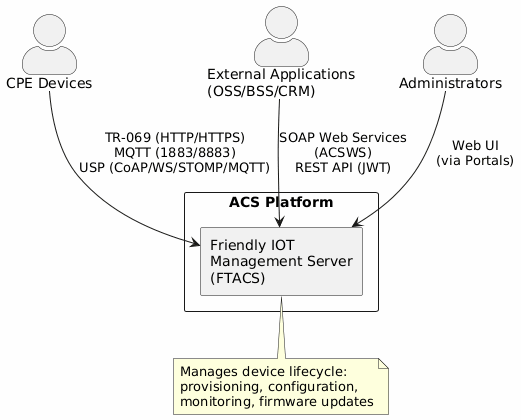

Use the following diagram to understand how ACS relates to external actors and systems.

c4-system-context

1.1. Container View

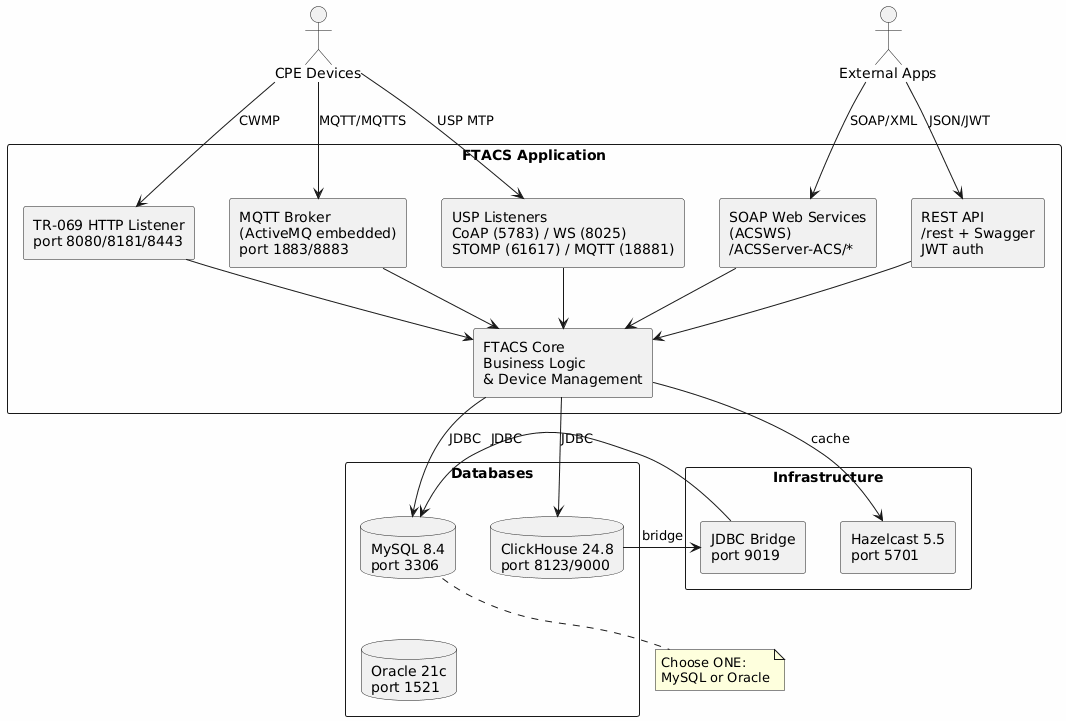

The ACS platform consists of the FTACS application server backed by MySQL (or Oracle), Hazelcast distributed cache, and ClickHouse analytics database.

c4-containers

2. Component Architecture

2.1. Application Framework

ACS is built on Spring Boot with the following architectural characteristics:

  • Asynchronous request processing using virtual threads

  • Connection pooling via HikariCP

  • Configuration-driven initialization

2.2. System Components Overview

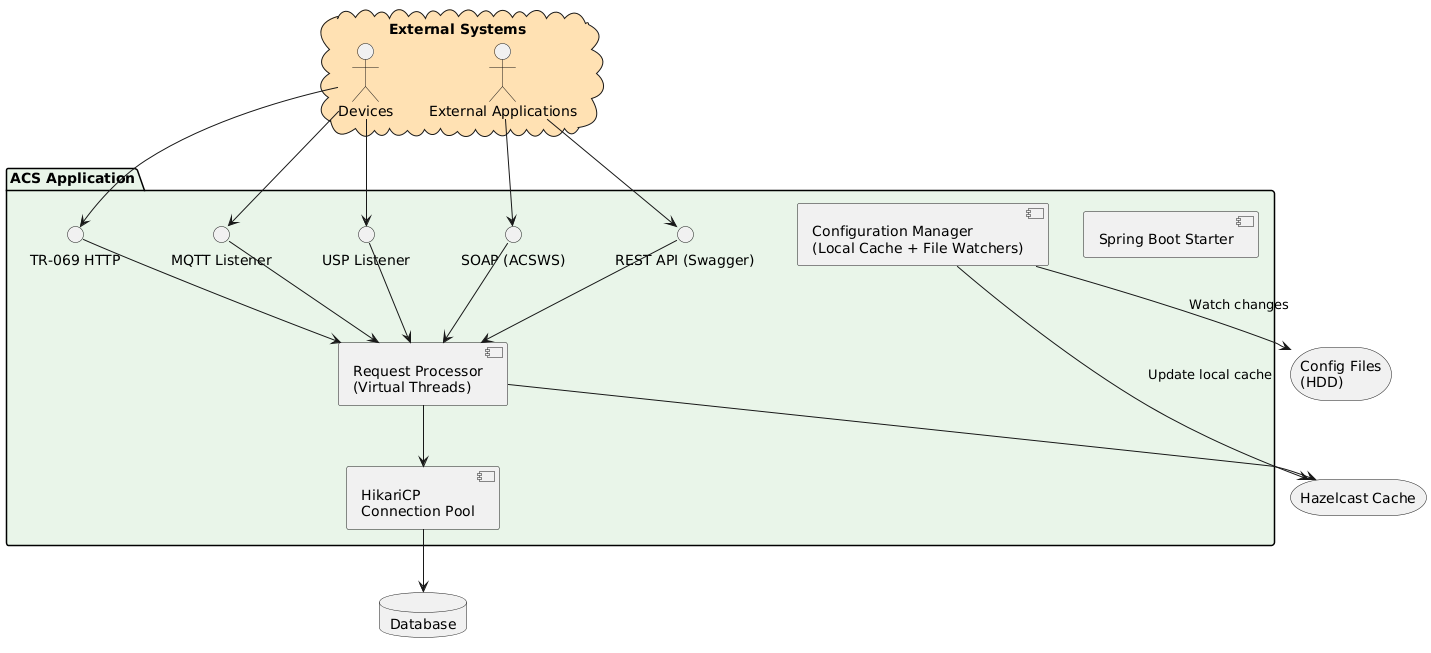

The following diagram shows all major components and their interactions. Refer to it when you need to understand how data flows between ACS subsystems.

components-overview

2.3. Component Layers

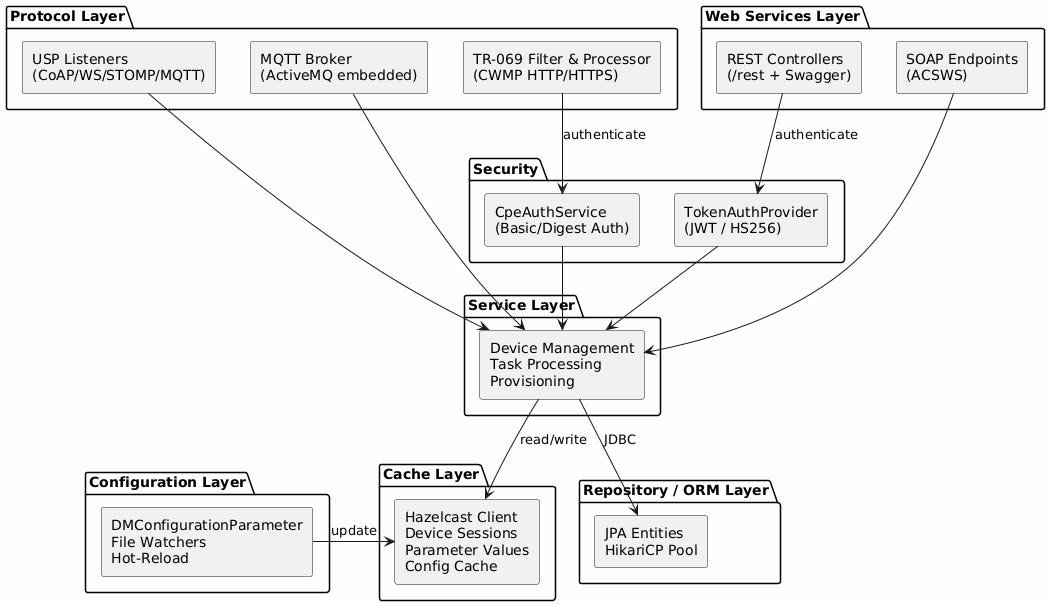

The internal architecture follows a layered pattern with clear separation of concerns.

c4-components

  • Protocol Layer — TR-069 (HTTP filter + CWMP processor), MQTT (embedded ActiveMQ broker), USP (CoAP, WebSocket, STOMP, MQTT transports)

  • Web Services Layer — SOAP endpoints (ACSWS for OSS/BSS integration), REST controllers (Swagger UI, JWT-protected)

  • Security — Device authentication (HTTP Basic/Digest via CpeAuthService), API authentication (JWT tokens via TokenAuthProvider)

  • Service Layer — Business logic: device management, task processing, provisioning, event handling

  • Cache Layer — Hazelcast distributed cache for device sessions, parameter values, and configuration data

  • Configuration Layer — Dynamic configuration with file watchers and hot-reload (DMConfigurationParameter enum)

  • Repository / ORM Layer — JPA entities with HikariCP connection pooling (MySQL or Oracle)

2.4. Database Connection Management

  • Connection Pool: HikariCP

  • Configuration: Minimum and maximum connection limits

3. TR-069 Request Flow

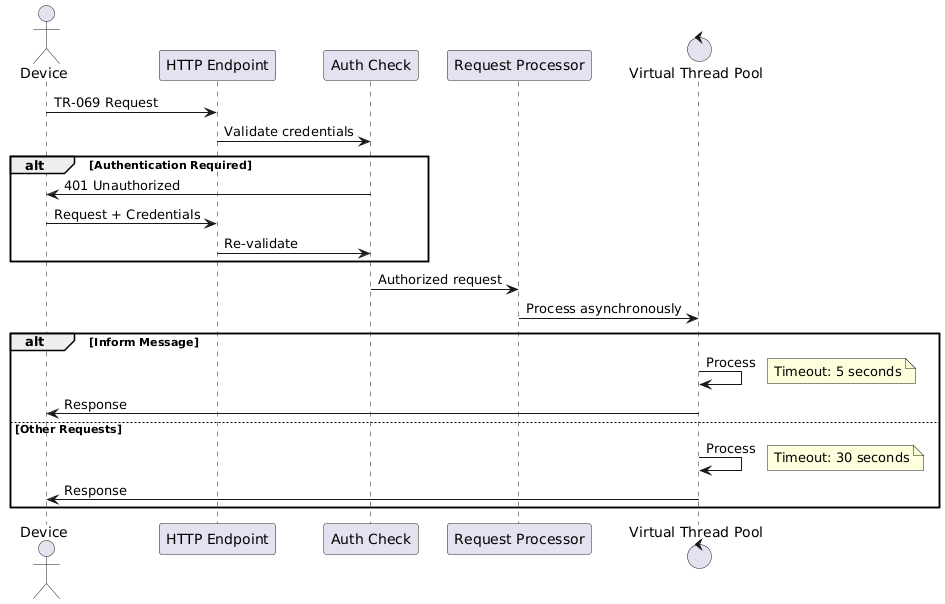

All TR-069 requests are processed asynchronously using Java virtual threads, enabling high concurrency with predictable timeout behavior. Use the following diagram to trace how a device request moves through the system.

tr069-flow

3.1. Request Processing Timeouts

Request Type Timeout

Inform (initial message)

5 seconds

Other requests

30 seconds

4. Application Startup Sequence

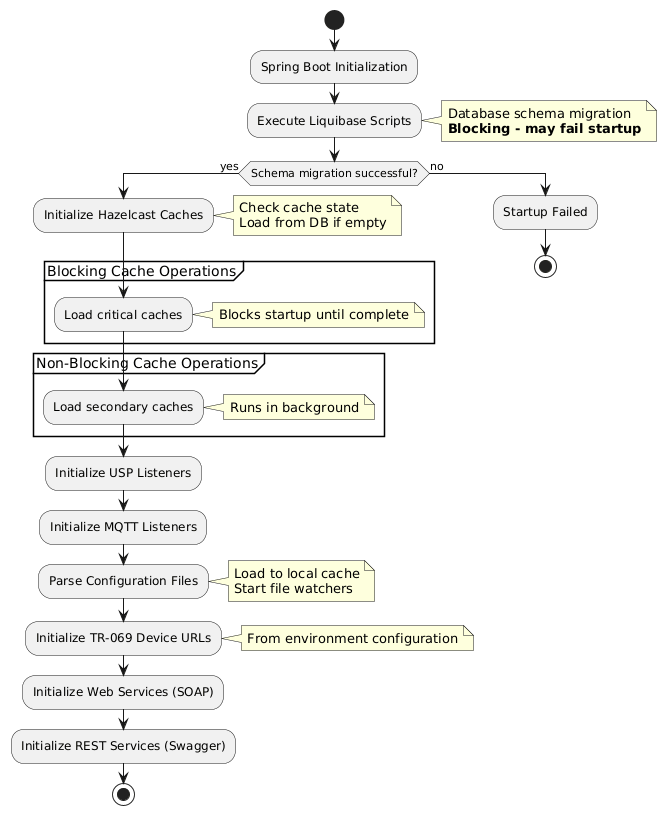

The ACS startup sequence has six phases. If any blocking phase fails, the application does not start. Review each phase below to understand what happens at boot time and where failures can occur.

startup-sequence

4.1. Phase 1: Database Schema (Blocking)

Liquibase executes database migration scripts. If migration fails at this phase, the application does not start.

A Liquibase migration failure is a hard blocker. Check your database connectivity and migration script compatibility before restarting.

4.2. Phase 2: Cache Initialization

Hazelcast caches are validated and populated from the database if empty.

  • Blocking operations: Critical caches must complete before proceeding

  • Non-blocking operations: Secondary caches populate in background

4.3. Phase 3: Protocol Listeners

Protocol-specific listeners are initialized:

  • USP listeners

  • MQTT listeners

4.4. Phase 4: Configuration Management

  • All configuration files are parsed and loaded into local cache

  • File system watchers are started for external configuration changes (HDD-based files)

4.5. Phase 5: TR-069 Endpoint Configuration

Device listening URLs are configured based on environment variables.

4.6. Phase 6: API Services

Final initialization of external interfaces:

  • SOAP web services (ACSWS)

  • REST API with Swagger documentation

5. Key Architectural Characteristics

5.1. Asynchronous Processing

All TR-069 requests are processed asynchronously using Java virtual threads, enabling high concurrency with predictable timeout behavior.

5.2. Configuration Hot-Reload

File system watchers enable runtime configuration updates without application restart.

5.3. Resilient Startup

The startup sequence is designed with clear failure points:

  • Database migration failures prevent startup

  • Critical cache loading blocks until complete

  • Non-critical operations run in background

6. Infrastructure and Dependencies

6.1. Runtime Environment

  • JDK: Java Development Kit 25

  • Framework: Spring Boot

  • Web Server: Embedded Tomcat

6.2. Main Database

Production deployment requires one of the following RDBMS:

  • Oracle

  • MySQL

Database selection is determined at production deployment time. You do not need to install both — choose one based on your organization’s requirements.

6.3. Quartz Database

A dedicated database for Quartz scheduler, used for cron job management and execution.

6.4. Historical Data Storage

  • ClickHouse: Time-series and historical data storage

  • ClickHouse JDBC Bridge: Enables inter-database communication between ClickHouse and the main database

6.5. Distributed Caching (Hazelcast)

Deployment options:

  • Production: External Hazelcast cluster (required)

  • Non-Production: Built-in embedded instance (supported)

6.6. Infrastructure Diagram

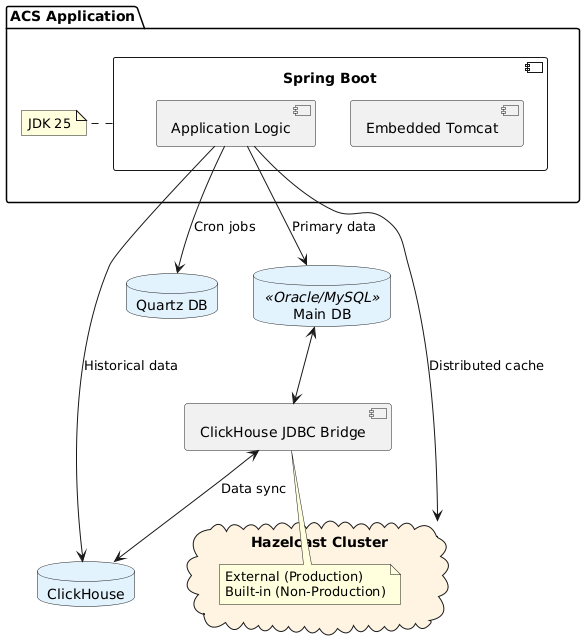

Use the following diagram to see how ACS connects to all infrastructure components.

acs-architecture

6.7. Component Summary

Component Purpose Deployment Mode

JDK 25 / Spring Boot

Application runtime

Required

Embedded Tomcat

HTTP server

Embedded

Oracle / MySQL

Primary data storage

External

Quartz DB

Job scheduling

External / Embedded

Hazelcast

Distributed caching

External / Embedded

ClickHouse

Historical data storage

External

ClickHouse JDBC Bridge

Database integration

External

7. Deployment Architecture

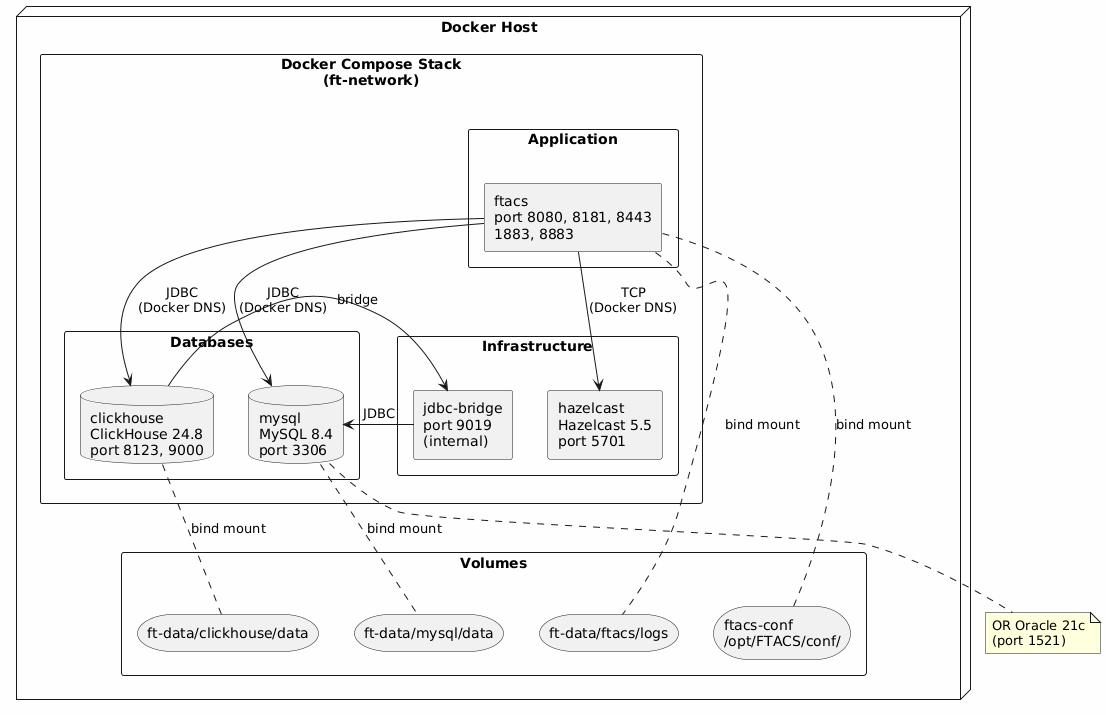

The production deployment uses Docker Compose on a single server (or split across multiple servers for larger installations).

c4-deployment

For detailed deployment instructions and alternative topologies (separate infrastructure, multi-server), see Installation Guide.
