Software Design Description: Deleted Devices Report

This document describes the logging mechanism for tracking deleted devices within the system and generating reports for audit and operational analysis.

1. Overview

This feature introduces a logging mechanism for tracking deleted devices within the system and generating reports for audit and operational analysis. Devices deleted either manually, via API, by ACS, or through auto-deletion are logged. Devices that are re-registered are removed from this log.

2. Database Changes

A new table cpe_deleted_log is introduced in schema ftacs:

<changeSet id="v6.4.8.35433-1" author="vadim">
  <createTable tableName="cpe_deleted_log" schemaName="ftacs">
    <column name="id" type="${number}" autoIncrement="true">
      <constraints primaryKey="true" nullable="false" primaryKeyName="PK_CPE_DELETED_LOG"/>
    </column>
    <column name="cpe_id" type="${number}">
      <constraints nullable="false"/>
    </column>
    <column name="serial" type="varchar(64)">
      <constraints nullable="false"/>
    </column>
    <column name="isp_id" type="${number}"/>
    <column name="manufacturer" type="varchar(64)"/>
    <column name="model" type="varchar(64)"/>
    <column name="creator" type="varchar(64)"/>
    <column name="last_connection" type="${date}"/>
    <column name="registered" type="${date}"/>
    <column name="created" type="${date}">
      <constraints nullable="false"/>
    </column>
  </createTable>

  <createIndex tableName="cpe_deleted_log" schemaName="ftacs"
               indexName="cpe_deleted_log_manuf_idx" unique="false">
    <column name="manufacturer"/>
  </createIndex>

  <createIndex tableName="cpe_deleted_log" schemaName="ftacs"
               indexName="cpe_deleted_log_model_idx" unique="false">
    <column name="model"/>
  </createIndex>

  <createIndex tableName="cpe_deleted_log" schemaName="ftacs"
               indexName="cpe_deleted_log_serial_idx" unique="false">
    <column name="serial"/>
  </createIndex>

  <createIndex tableName="cpe_deleted_log" schemaName="ftacs"
               indexName="cpe_deleted_log_created_idx" unique="false">
    <column name="created"/>
  </createIndex>
</changeSet>

<changeSet id="v6.4.11.35433-2" author="vadim" dbms="oracle">
  <createSequence
    incrementBy="1"
    sequenceName="CPE_DELETED_LOG_0"
    startValue="1"
    schemaName="ftacs"/>
</changeSet>

3. Web Service (WS) Changes

Method Affected: deleteCPE

Changes:

A new optional field creator is added to the deleteCPE request payload.
This value is stored in the creator field of cpe_deleted_log.
Caller modules (UI/API/etc.) must now supply the creator value when invoking deleteCPE.

4. Backend Implementation

4.1. On Device Deletion

A row is inserted into cpe_deleted_log with the relevant device details.
The creator field is set to:
- Value from deleteCPE.creator if provided,
- "Auto-delete" if triggered by the weak device deletion job,
- "ACS" if deleted internally by ACS.

4.2. On Device Registration

If a device with the same serial exists in cpe_deleted_log, that row is deleted upon successful re-registration.

5. WS Callers (UI/API/DelDev/etc.)

All callers of the deleteCPE method must:

Include the new creator field in the request payload.
Set appropriate values like Admin, API, Auto-delete, ACS, etc., based on the deletion context.

6. Reporting Requirements

New UI report section: CPEAdmin → Reports → Deleted devices
Report fields include: Serial number, Manufacturer, Model, Registration date, Last connection, Deleted, Deleted By.
Export support: HTML.
Re-registered devices are excluded from this report.

Deleted devices report menu entry in CPEAdmin

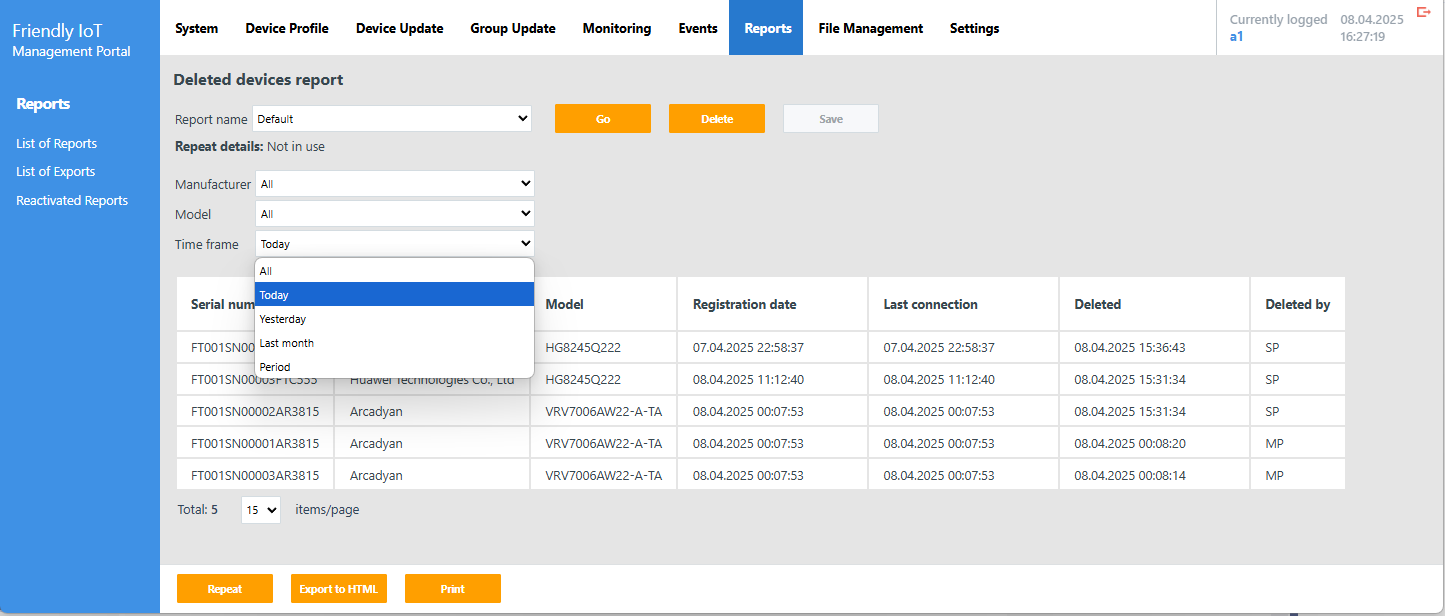

Deleted devices report list with filtering options

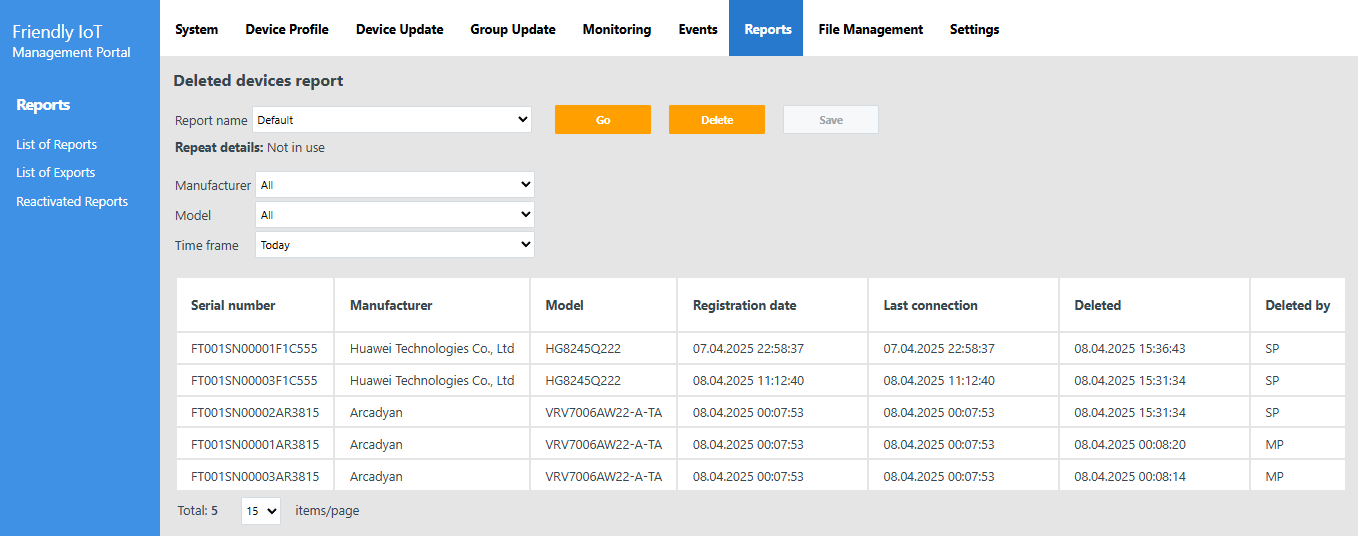

Deleted devices report detail view showing device information

List of deleted devices present with descending sorting by "Deleted" column by default. No manual sorting available.
"Deleted by" value being taken from "ApplicationShortName" GUI setting. For APIs it is hardcoded as "API" value.
