Data Streams (MQTT) via Monitoring SDD

This document describes the design of the Data Streaming (MQTT) via Monitoring component of Friendly Technologies Device Management System, enabling you to send monitoring data to an external MQTT system on a per-domain basis.

1. Introduction

This feature provides the ability to send monitoring data to an external MQTT system.

You can configure an external system per domain (Global).

1.1. Document overview

This document describes the design of Data Streaming (MQTT) via Monitoring component of Friendly Technologies Device Management System.

2. Software Architecture overview

When Monitoring data is received from CPE, ACS sends it (or adds it to a sender queue) via MQTT to the configured server.

3. Software design description

User Case 1 Configure data streams per Domain (Global)

Description

Ability to configure the MQTT settings for each domain

Requirement

  1. Settings→External Systems→MQTT should allow required fields for feature configuring on the MQTT tab.

  2. Feature enabling/disabling is from configuration tab.

  3. All the configurations w.r.t the connectors (MQTT) are domain specific.

  4. Admin should be able to configure different MQTT configurations for different domains.

3.1. DB changes

New configuration properties are added automatically by ACS during start.

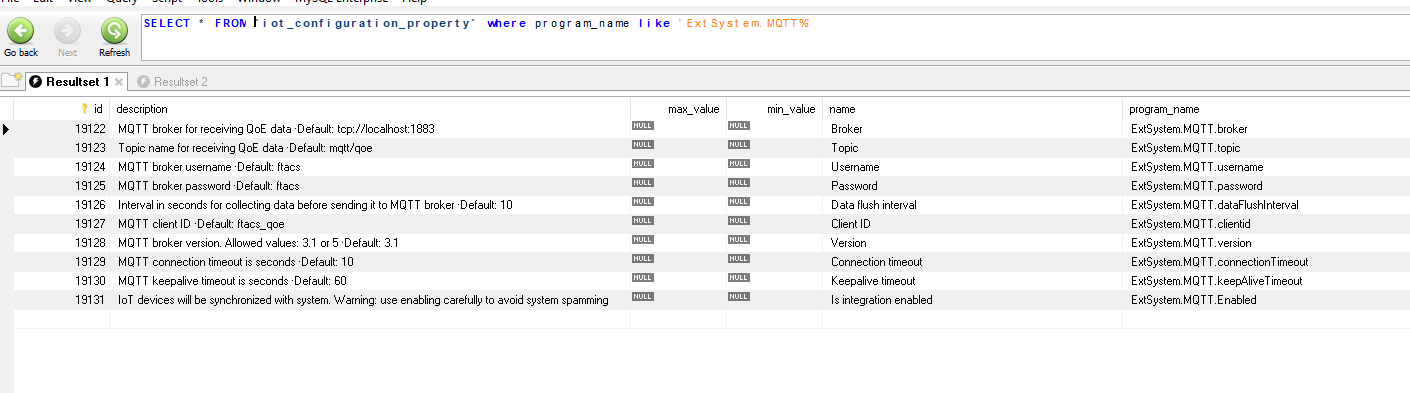

Database configuration properties for MQTT data streaming

3.2. UI changes

A new tab is available for MQTT configuration.

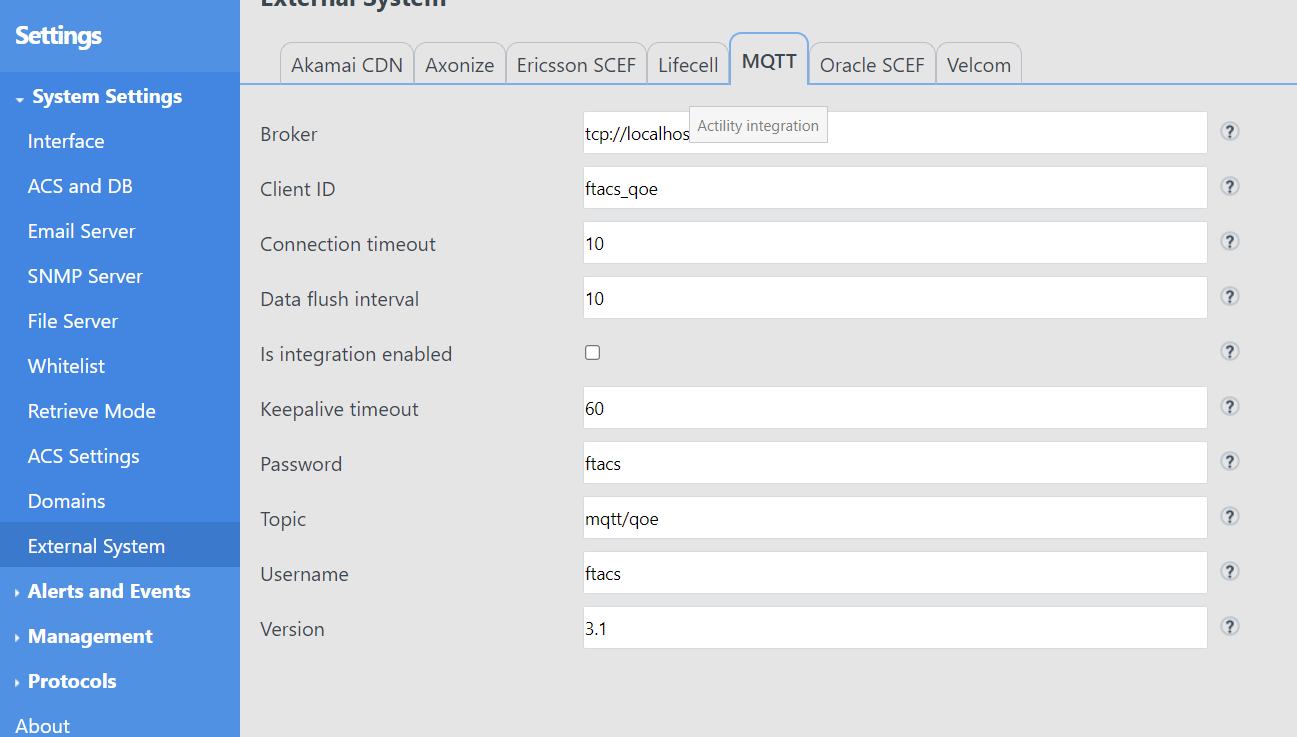

MQTT configuration tab in the UI with broker

  • Broker - MQTT broker for receiving QoE data

  • Topic - Topic name for receiving QoE data

  • Username - MQTT broker username

  • Password - MQTT broker password

  • Data flush interval - Interval in seconds for collecting data before sending it to MQTT broker. If 0 — data sends immediately

  • Client ID - MQTT client ID

  • Version - MQTT broker version. Allowed values: 3.1 or 5

  • Connection timeout - MQTT connection timeout in seconds

  • Keepalive timeout - MQTT keepalive timeout in seconds

3.3. ACS configuration change

Added new value to qoeDataStoreMode = 1 (don’t store QoE data) which disables storing to CSV or/and ClickHouse

3.4. Data format

Data is sent in JSON format:

{
  "dataList": [
    {
      "serial": "[DEVICE_SERIAL]",
      "domain": "[DOMAIN_NAME]",
      "manufacturer": "[MANUFACTURER_NAME]",
      "model": "[DEVICE_MODEL]",
      "parameters": [
        {
          "name": "[FULL_PARAMETER_NAME]",
          "value": "[PARAMETER_VALUE]",
          "ts": [TIMESTAMP_DATA_RECEIVING]
        }
      ]
    }
  ]
}

Example:

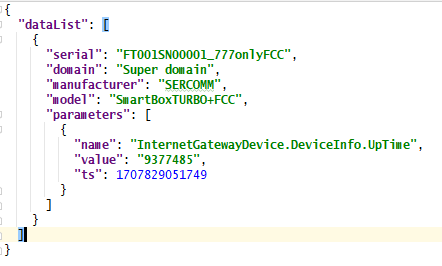

Example MQTT JSON data payload

3.5. TCP level dialog

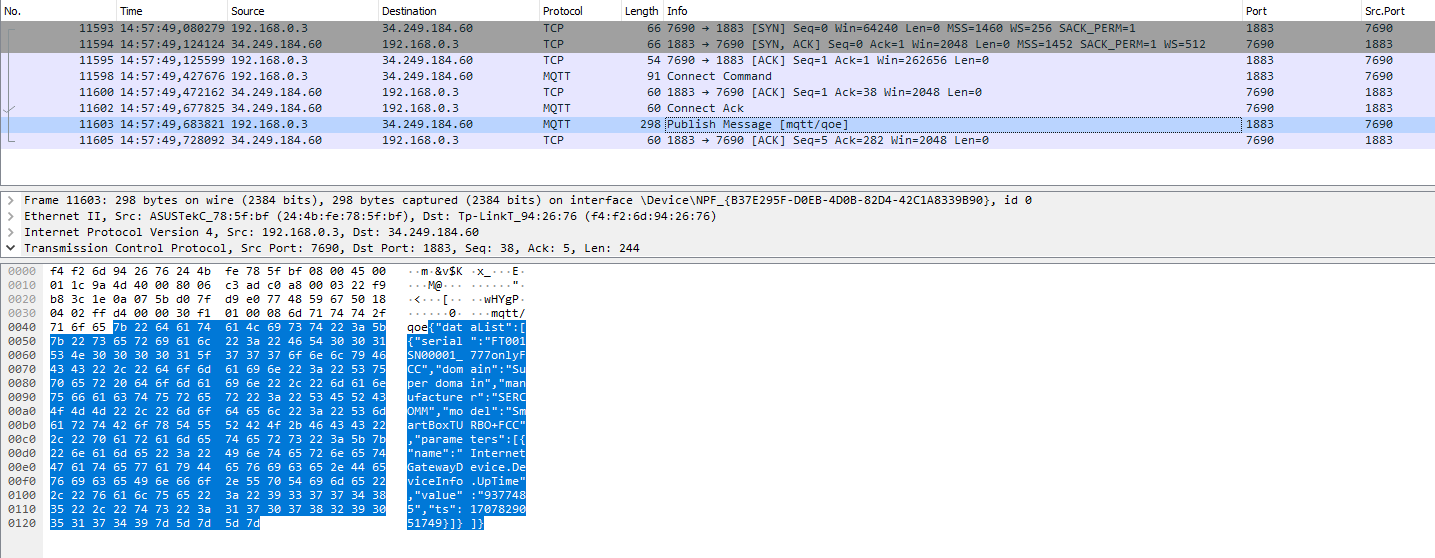

TCP level dialog showing MQTT connection handshake and data exchange
