Device Parameter Operation Result Event Subscription - Software Design Document

This document describes the design of the Event Subscription system for Device Parameter Operation Results, enabling external systems to receive asynchronous notifications when device parameter operations (Set or Get) are completed.

1. Overview

1.1. Purpose

This document describes the design of the Event Subscription system for Device Parameter Operation Results, enabling external systems to receive asynchronous notifications when device parameter operations (Set or Get) are completed.

1.2. Problem Statement

When Customer API triggers device parameter operations via Northbound API (SetParameterValues or GetParameterValues), these operations can take hours if the device is offline or sleeping. Current polling mechanisms are inefficient for long-running operations. This feature enables webhook-based notifications when parameter operations complete.

For SetParameterValues operations, the notification is sent immediately upon successful SET completion, without waiting for a consequent GET operation. For GetParameterValues operations, the notification is sent when the GET response is received.

1.3. Solution Summary

Implement an event subscription system that:

  • Allows customers to subscribe to device parameter operation results (Set or Get) via webhook URLs

  • Filters subscriptions by domain, device model, serial number, and transaction ID

  • Sends HTTP POST notifications when parameter operations complete:

    • For SetParameterValues: notification sent immediately upon successful SET completion

    • For GetParameterValues: notification sent when GET parameter response is received

  • Supports authentication (API key, OAuth2)

  • Provides asynchronous, non-blocking delivery with retry logic

2. Architecture

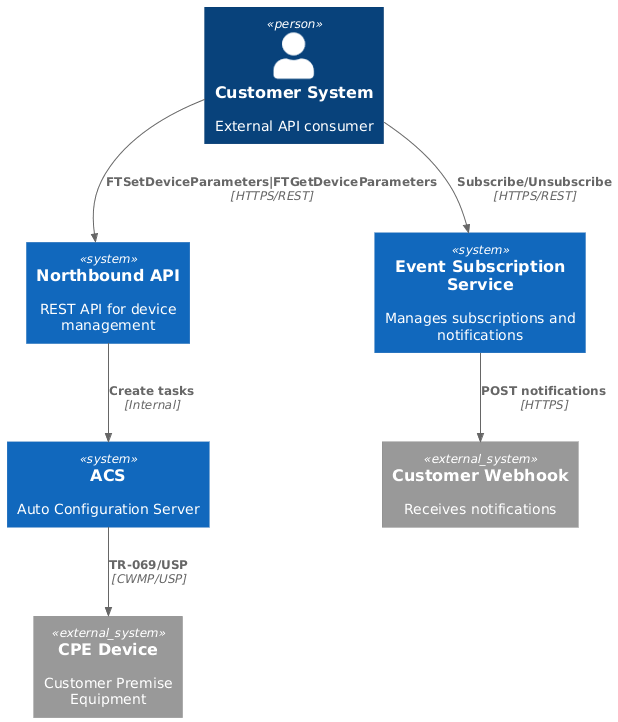

2.1. System Context

system-context

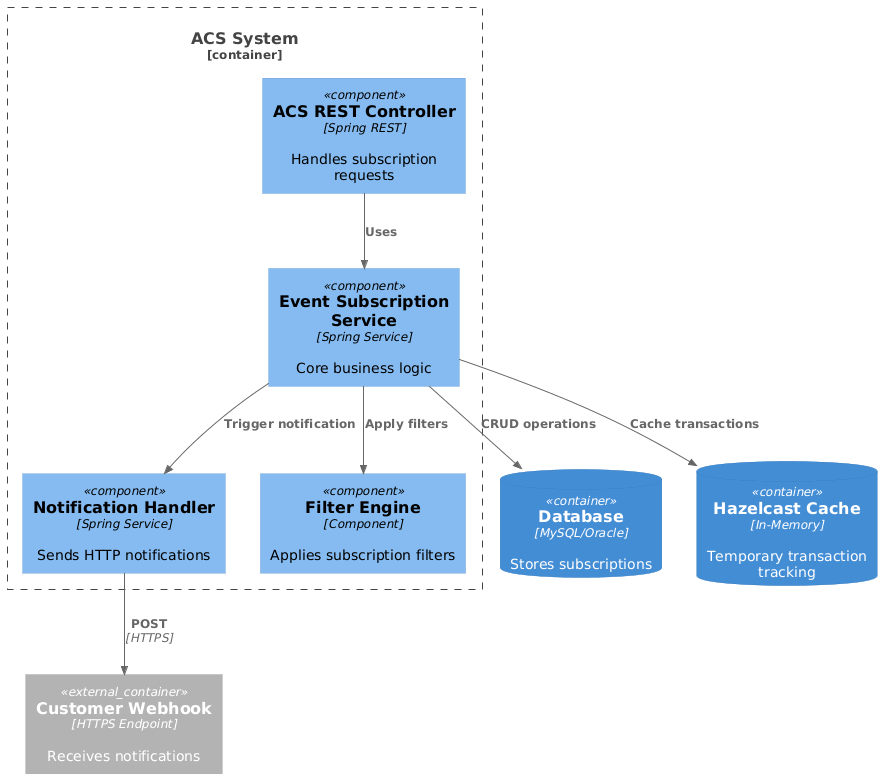

2.2. Component Architecture

component-architecture

2.3. Configuration changes

2.3.1. Hazelcast changes

Add this section to hazelcast-client.xml under "hazelcast-client → user-code-deployment → classNames":

<className>com.friendly.dm.monitoring.service.dto.SubscriptionDefinition</className>

2.3.2. Template file location

Put device-parameter-operation-result-template.json in jboss configuration folder

3. Data Model

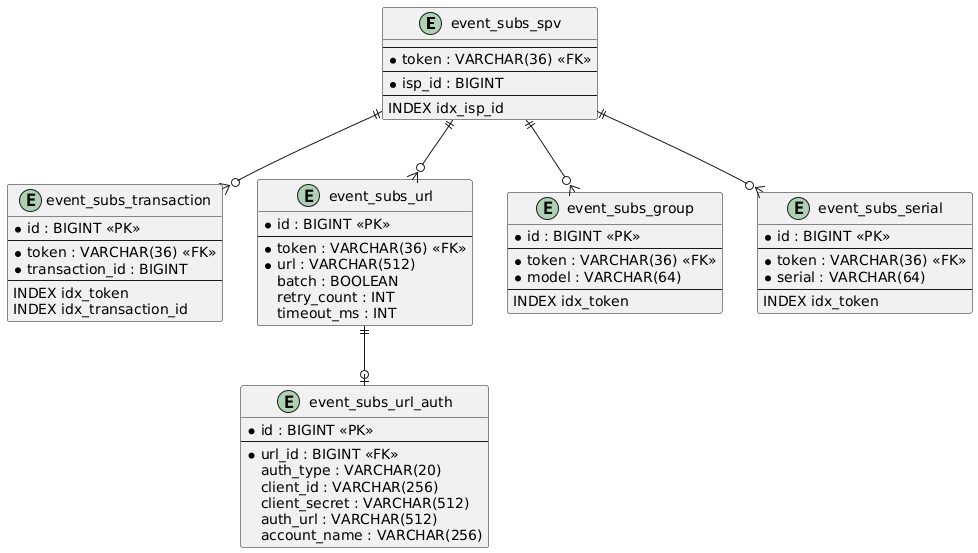

3.1. Database Schema

data-model

3.2. Liquibase Schema Reference

See changelog-6_4_9_1.xml for complete schema definition with:

  • Table creation scripts

  • Indexes for performance optimization

  • Foreign key constraints

  • Rollback procedures

4. API Specification

4.1. Subscribe Endpoint

POST /rest/subscribeDeviceParameterOperationResult

Request:
{
  "models": [                            // Optional: filter by device models
    "W270",
    "DG3270"
  ],
  "serials": [                           // Optional: filter by serial numbers
    "8LUG1E73058377"
  ],
  "transactionIds": [                    // Optional: filter by transaction IDs
    14562,
    14563
  ],
  "urls": [                              // Required: webhook endpoints
    {
      "url": "https://customer.com/webhook",
      "batch": false,                    // Future: batch multiple notifications
      "auth": {                          // Optional: authentication
        "type": "NoAuth",                // NoAuth, OAuth2, ApiKey, Basic
        "clientId": "client-id",         // For OAuth2
        "clientSecret": "secret",        // For OAuth2
        "authUrl": "https://auth.com/token", // For OAuth2
        "accountName": "customer-account" // For OAuth2
      }
    }
  ]
}

Response:
{
  "token": "a1b2c3d4-e5f6-7890-abcd-ef1234567890"
}

4.2. Unsubscribe Endpoint

POST /rest/unsubscribeDeviceParameterOperationResult

Request:
{
  "token": "a1b2c3d4-e5f6-7890-abcd-ef1234567890"
}

Response:
{
  "success": true
}

4.3. Webhook Notification Format

NoAuth:

POST {customer_webhook_url}

Headers:
  Content-Type: application/json

Body:
{
  "serial": "8LUG1E73058377",
  "domain": "watertenent",
  "model": "W270",
  "taskId": 14562,
  "parameters": [
    {
      "name": "Root.Device.0.Current Time",
      "value": "Thu Oct 06 15:11:01 EEST 2025",
      "ts": 167889999999
    }
  ],
  "errorcode": 100,
  "message": ""
}

OAuth2:

POST {customer_webhook_url}

Headers:
  Content-Type: application/json
  Authorization: Bearer {access_token}

Body: {same as above}

ApiKey:

POST {customer_webhook_url}

Headers:
  Content-Type: application/json
  X-API-Key: {api_key}

Body: {same as above}

5. Business Logic

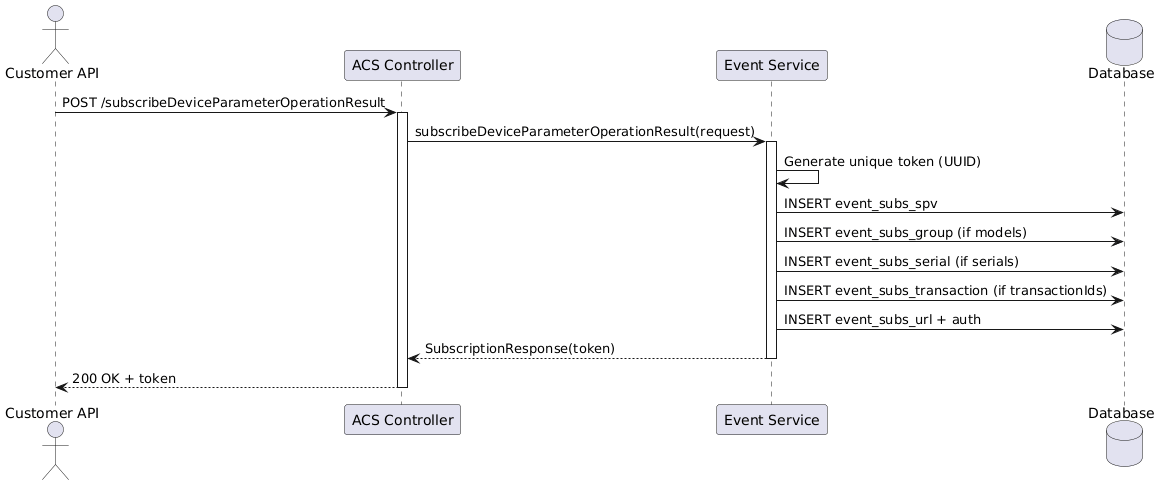

5.1. Subscription Flow

subscription-flow

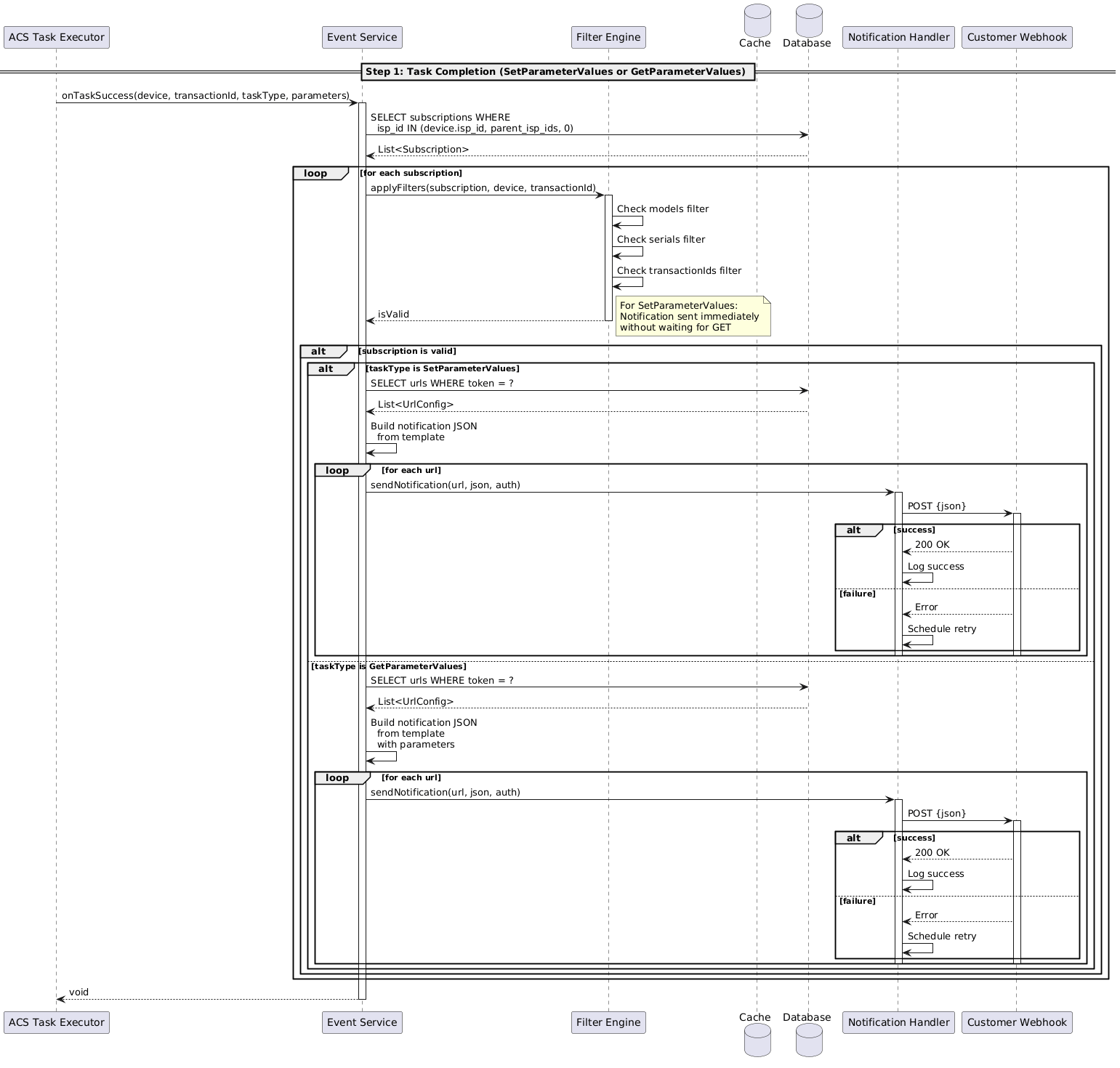

5.2. Device Parameter Operation Notification Flow

notification-flow

5.3. Notification Template

Template file loaded on startup: device-parameter-operation-result-template.json

{
  "headers": {},
  "body": "{\n  \"serial\": ${serial},\n  \"domain\": ${domain},\n  \"model\": ${model},\n  \"taskId\": ${taskId},\n  \"transactionId\": ${transactionId},\n  \"parameters\": ${parameters},\n  \"errorcode\": ${errorcode},\n  \"message\": ${message}\n}"
}

Template variables are replaced at runtime using the templating engine.

6. Non-Functional Requirements

6.1. Performance (NFR1)

  • Notification sending is fully asynchronous and non-blocking

  • Cache lookup time: < 5ms

  • Database query optimization via indexes on token, isp_id, transaction_id

  • Async executor pool: 20 threads for notification sending

6.2. Reliability (NFR2)

  • Retry logic: configured attempts

  • Dead letter log for permanently failed notifications

6.3. Security (NFR3)

  • API keys encrypted at rest using AES-256

  • HTTPS required for webhook URLs

  • Webhook URLs validated against SSRF attacks

6.4. Scalability (NFR4)

  • Hazelcast distributed cache for multi-node deployments

  • Horizontal scaling supported

  • Database connection pool: 50 connections

6.5. Configurability (NFR6)

  • Template file hot-reload without restart

  • Retry configuration via application properties

  • Circuit breaker thresholds configurable

7. Testing Strategy

7.1. Overview

Due to critical customer urgency, testing is executed in three progressive stages, allowing early delivery of core functionality while validating additional features incrementally.

7.2. Stage 1: Core Functionality (v6.4.9.1 - Immediate Release)

  • Scope:

    • Protocol: LWM2M devices only

    • Global subscription (all models)

    • Authentication: No authentication (NoAuth only)

    • Database: Single DBMS type (MySQL OR Oracle - requires clarification from support team)

    • Functionality: Basic subscription and notification flow

Action Required: Support team must clarify the customer’s production database type (MySQL or Oracle) before Stage 1 deployment. Initial testing and validation will be performed on the confirmed DBMS type only.

Test Cases:

ID Test Case Expected Result

ST1.1

All devices Subscribe

Subscription created, token returned

ST1.2

Trigger SET parameter on subscribed device

Notification sent immediately to webhook URL with correct JSON format

ST1.3

Trigger GET parameter on subscribed device

Notification sent to webhook URL with correct JSON format when device responds

ST1.4

Verify JSON payload format matches template

All fields present: serial, domain, model, taskId, parameters, errorcode, message

ST1.5

Unsubscribe using token

Subscription removed, no further notifications

ST1.6

Device offline, task completed not immediately

Notification still sent when device comes online

Validation Criteria:

  • JSON format exactly matches customer API expectations

  • NoAuth webhooks successfully receive POST requests

  • No impact on existing ACS device communication performance

  • Transaction tracking works across device offline periods

Deliverable: Release to customer for production use

7.3. Stage 2: Filtering and Authentication Support (v6.4.9.1 Hotfix)

Scope:

  • Add authentication types: OAuth2, ApiKey, Basic

  • Protocol: LWM2M/USP devices only

  • Database: Same as Stage 1

Test Cases:

ID Test Case Expected Result

ST2.1

Subscribe with model filter for LWM2M device

Subscription created, token returned

ST2.2

Subscribe with serial filter for LWM2M device

Subscription created, token returned

ST2.3

Subscribe with transaction ID filter

Subscription created, token returned

ST2.4

Filter validation: wrong model

No notification sent

ST2.5

Filter validation: domain hierarchy

Parent domain subscription receives notification

ST2.6

Subscribe with OAuth2 authentication

Subscription created with OAuth2 config stored encrypted

ST2.7

OAuth2 token acquisition

Access token obtained from auth URL using client credentials

ST2.8

Notification with OAuth2 Bearer token

POST request includes valid Authorization header

ST2.9

OAuth2 token refresh on expiration

New token obtained and used for subsequent requests

ST2.10

Subscribe with ApiKey authentication

API key stored encrypted in database

ST2.11

Notification with ApiKey

POST request includes X-API-Key header

ST2.12

Invalid OAuth2 credentials

Error logged, notification marked as failed

Security Validation:

  • Credentials never logged in plain text

  • HTTPS enforced for webhook URLs with auth

  • OAuth2 tokens cached with appropriate TTL

Deliverable: Hotfix deployed to customer

7.4. Stage 3: Full Protocol Support (v6.5.0 - Next Major Release)

Scope:

  • Protocols: USP, TR-069, MQTT

  • Authentication: All types (NoAuth, OAuth2, ApiKey)

  • Database: Both MySQL and Oracle validated

  • Additional features: extended retry logic

Test Cases:

ID Test Case Expected Result

ST3.1

TR-069 device SET/GET parameter flow

Notification sent with correct TR-069 parameter paths

ST3.2

MQTT device parameter update

Notification sent with MQTT-specific format

ST3.3

Cross-protocol subscription (mixed devices)

All matching devices trigger notifications regardless of protocol

ST3.4

Oracle database backend

All CRUD operations work correctly with Oracle

ST3.5

MySQL database backend

All CRUD operations work correctly with MySQL

ST3.6

Database failover scenario

Subscriptions persist, cache rebuilds on recovery

ST3.7

Circuit breaker activation

Failed webhook moved to circuit breaker state after 5 failures

ST3.8

Dead letter queue

Permanently failed notifications stored for manual review

Deliverable: Full production release with all features

7.5. Test Environment Requirements

Stage 1:

  • ACS 6.4.9.1 with LWM2M support

  • Single database instance (MySQL or Oracle)

  • Mock webhook server for notification testing

  • 10 test devices (LWM2M capable)

  • Hazelcast cluster (2+ nodes)

Stage 2:

  • OAuth2 mock server for authentication testing

  • SSL certificates for HTTPS webhook URLs

  • Encryption key management setup

Stage 3:

  • Multi-protocol test devices (USP, TR-069, MQTT)

  • Both MySQL and Oracle database instances

  • Production-scale load testing environment

  • Distributed tracing infrastructure
