Configuration Guide

This document is the consolidated reference for all ACS configuration files and environment variables. Configuration is cache-based and most files support hot-reload — changes are detected automatically and synchronized across cluster nodes via Hazelcast without requiring a restart.

1. Overview

The ACS application uses multiple configuration files to control runtime behavior:

File Purpose Hot-Reload

app.env

Runtime environment: directories, database, JVM, TR-069 endpoints, SSL, Hazelcast

No (loaded at startup)

acs_configuration.xml

Core ACS settings: TR-069/TR-369 behaviors, QoE, authentication, sessions, STUN/XMPP, events, retention

Yes

bulk_data.xml

Bulk Data collection/telemetry host and per-model paths

Yes

ctn_info.properties

CTN (Customer/Connection) enrichment from RADIUS/IPoE database

Yes

external_trace.properties

Protocol trace of ACS-CPE RPCs to an external sink (SOAP/SYSLOG)

Yes

fcc.properties

FCC-style speed/latency tests and WAN-usage triggered rechecks

Yes

force_qoe_stop.properties

Operational switches to halt or constrain QoE monitoring

Yes

ftacs_task.properties

Per-RPC task handling: reject timeouts, resend policies, backup attempts

Yes

parameterNamesCacheRules.yaml

Rules for caching of parameter names (GPN) to optimize tree discovery

No (evaluated at startup)

hazelcast-client.xml

Hazelcast client configuration for cluster connectivity

No (loaded at startup)

.env (Docker Compose)

Per-service FTACS: port mapping, HikariCP pools, async executors, protocol settings, JVM

No (container restart)

.env.mysql / .env.oracle (Docker Compose)

Shared infrastructure: DB host/vendor/credentials, Hazelcast, ClickHouse, protocol ports

No (container restart)

logback-spring.xml

Logging configuration (Logback with async appenders, rolling files)

Yes (scan="true" scanPeriod="300 seconds")

ftacsws-users.properties

SOAP Web Service user credentials (username={noop}password format)

Yes (hot-reloaded)

ftacsws-roles.properties

SOAP Web Service role-to-user mapping (username=roleName format)

Yes (hot-reloaded)

hardcoded_event_soap_template.xml

SOAP envelope template for hardcoded device event notifications

Yes (hot-reloaded)

set-parameter-result-template.json

JSON template for SetParameterValues result subscription notifications

Yes (hot-reloaded)

ftacs.keystore

SSL/TLS keystore file (JKS or PKCS12) for HTTPS and secure protocols

No (restart required)

All configuration files are located under /etc/acs/ (or your deployment path, typically ${CONF_DIR}). For Docker/Compose builds, the project root or mounted volume is used.

2. Environment Variables

Defines the runtime environment for the ACS application — base directories, database connections, JVM settings, TR-069 endpoints, SSL, and cluster (Hazelcast) settings.

File: app.env
Location: /etc/acs/app.env or project root for Docker/Compose builds.
Reload: Requires restart. The same .env file can be used in both systemd and Docker Compose setups.

2.1. Sample

Click to expand app.env sample
# =============================================================================
# Friendly Tech ACS — Environment Configuration (app.env)
# =============================================================================
# This file defines the runtime environment for the ACS application.
# Used during deployment and startup (.env sourced by systemd, Docker, or
# launch scripts).

# =============================================================================
# Application Directories
# =============================================================================
APP_HOME=/usr/local/ftacs
CONF_DIR=${APP_HOME}/conf
LOG_DIR=${APP_HOME}/logs
EXT_DIR=${APP_HOME}/ext
DB_LIQUIBASE_DIR=${APP_HOME}/liquibase

# =============================================================================
# Database — MySQL
# =============================================================================
DB_VENDOR=mysql
DB_HOST=db
DB_PASSWORD=ftacs
MYSQL_USER=ftacs
MYSQL_PORT=3306

# =============================================================================
# Database — Oracle (uncomment to use)
# =============================================================================
# DB_VENDOR=oracle
# ORACLE_PORT=1521
# ORACLE_SERVICE=XEPDB1
# ORACLE_USER_FTACS=ftacs
# ORACLE_USER_QUARTZ=ftacs_quartz

# =============================================================================
# ClickHouse
# =============================================================================
# CLICKHOUSE_HOST=localhost
# CLICKHOUSE_PORT=8123
# CLICKHOUSE_SCHEMA=ftacs_qoe_ui_data
# CLICKHOUSE_USER=ftacs
# CLICKHOUSE_PASWORD=ftacs

# =============================================================================
# TR-069 Endpoints
# =============================================================================
# WEB_TR069_NO_AUTH=/ftacs/ACS
# WEB_TR069_BASIC=/ftacs-basic/ACS
# WEB_TR069_DIGEST=/ftacs-digest/ACS

# =============================================================================
# JVM
# =============================================================================
JAVA_OPTS='-Xms1g -Xmx4g'

# =============================================================================
# HTTP / HTTPS
# =============================================================================
HTTP_PORTS=8080
HTTPS_PORTS=8443
# SSL_KEYSTORE=${CONF_DIR}/ftacs.keystore
# SSL_KEYSTORE_PASSWORD=friendly

# =============================================================================
# Hazelcast
# =============================================================================
# HZ_MEMBERS=127.0.0.1:5701
# HZ_CLIENT_CONFIG=${CONF_DIR}/hazelcast-client.xml
# HZ_JMX_PORT=9110
# HZ_JMX_INTERNAL_PORT=9110

# =============================================================================
# Server Bind Address
# When FTACS_IPV6_ADDRESS is set, IPv4 bind is skipped (listeners bind on IPv6
# only, `::` dual-stack socket accepts IPv4 traffic via mapped addresses).
# =============================================================================
# Docker bridge, IPv4 only (recommended):
#FTACS_IP_ADDRESS=0.0.0.0
#FTACS_IPV6_ADDRESS=
# Docker bridge, dual-stack via IPv6 wildcard:
#FTACS_IP_ADDRESS=
#FTACS_IPV6_ADDRESS=::
# Host-network or bare-metal, IPv6 only:
#FTACS_IP_ADDRESS=
#FTACS_IPV6_ADDRESS=2a01:4f9:3070:2862::2
# Host-network or bare-metal, IPv4 only:
#FTACS_IP_ADDRESS=192.168.1.100
#FTACS_IPV6_ADDRESS=

# =============================================================================
# ACS Mode & Features
# =============================================================================
#FTACS_MODE=ALL
#FT_MQTT_ADDITIONAL_CONNECTOR_URI=mqtt://0.0.0.0:1884
#FTACS_STATS_THREADS=64
#FTACS_SUBSCRIPTION_PARAMETER_ONLY_VALUE_CHANGE=0
#FTACS_SUBSCRIPTION_PARAMETER_NOT_NULL_ONLY=0

# =============================================================================
# USP X509 Certificates (optional)
# =============================================================================
#FT_USP_X509_KEYSTORE_PATH=/path/to/keystore.ks
#FT_USP_X509_KEYSTORE_PASSWORD=password
#FT_USP_X509_KEYSTORE_PK_PASSWORD=password
#FT_USP_X509_TRUSTSTORE_PATH=/path/to/truststore.ks
#FT_USP_X509_TRUSTSTORE_PASSWORD=password

# =============================================================================
# MQTT X509 Certificates (optional)
# =============================================================================
#FT_MQTT_X509_KEYSTORE_PATH=/path/to/mqtt-keystore.ks
#FT_MQTT_X509_KEYSTORE_PASSWORD=password
#FT_MQTT_X509_PK_PASSWORD=password
#FT_MQTT_X509_TRUSTSTORE_PATH=/path/to/mqtt-truststore.ks
#FT_MQTT_X509_TRUSTSTORE_PASSWORD=password

# =============================================================================
# MQTT and USP Settings
# =============================================================================
#MQTT_ACTIVE_API=api-v1,api-v2
#USP_SERVER_DM_PATH=tr-181-2-16-0-usp-full.xml

# =============================================================================
# Spring & Logging
# =============================================================================
SPRING_CONFIG_EXTRA=file:${CONF_DIR}/
LOGBACK_CONFIG=${CONF_DIR}/logback-spring.xml
CXF_PATH=/ACSServer-ACS
#SPRING_PROFILE=mysql
FTACS_PASSWORD=${DB_PASSWORD}
QUARTZ_PASSWORD=${DB_PASSWORD}

2.2. Environment Variables Reference

2.2.1. Application Directories

Key Description Default/Example

APP_HOME

Root folder from which other paths are derived

/usr/local/ftacs

CONF_DIR

Configuration directory

${APP_HOME}/conf

LOG_DIR

Logs directory

${APP_HOME}/logs

EXT_DIR

External libraries/plugins

${APP_HOME}/ext

DB_LIQUIBASE_DIR

Liquibase migration scripts

${APP_HOME}/liquibase

2.2.2. Database

Key Description Default/Example

DB_HOST

Primary DB host

localhost

DB_PASSWORD

Global DB password (for FTACS + Quartz)

ftacs

DB_VENDOR

Database type (mysql or oracle)

mysql

MYSQL_PORT

MySQL port

3306

MYSQL_USER

MySQL user

ftacs

ORACLE_PORT

Oracle listener port (if using Oracle)

1521

ORACLE_SERVICE

Oracle service name

XEPDB1

ORACLE_USER_FTACS

Oracle schema for main app

ftacs

ORACLE_USER_QUARTZ

Oracle schema for Quartz scheduler

ftacs_quartz

2.2.3. ClickHouse

Key Description Default/Example

CLICKHOUSE_HOST

ClickHouse host

localhost

CLICKHOUSE_PORT

ClickHouse HTTP port

8123

CLICKHOUSE_SCHEMA

Target schema (used in application.yaml as spring.clickhouse.schema)

ftacs_qoe_ui_data

CLICKHOUSE_USERNAME

ClickHouse user (used in application.yaml as spring.clickhouse.user)

ftacs

CLICKHOUSE_PASWORD

ClickHouse password (deliberate typo — application.yaml binds to this exact name via ${CLICKHOUSE_PASWORD:ftacs}. Do not "fix" it in app.env or the password will not be injected)

ftacs

ClickHouse variable name discrepancy: application.yaml uses CLICKHOUSE_PASWORD (single S, typo), CLICKHOUSE_USERNAME, and CLICKHOUSE_SCHEMA. The Docker Compose .env.mysql / .env.oracle files use the corrected names: CLICKHOUSE_PASSWORD, CLICKHOUSE_USERNAME, CLICKHOUSE_SCHEMA. The docker-compose.yml maps these correctly to the ClickHouse container and to the FTACS service. When writing app.env for systemd deployments, use the application.yaml names (CLICKHOUSE_PASWORD, CLICKHOUSE_SCHEMA). When writing Docker Compose .env files, use the standard names (CLICKHOUSE_PASSWORD, CLICKHOUSE_SCHEMA) — compose.yml handles the mapping.

2.2.4. TR-069 Endpoints

Key Description Default/Example

WEB_TR069_NO_AUTH

No-auth TR-069 endpoint path

/ftacs/ACS

WEB_TR069_BASIC

HTTP Basic-auth TR-069 endpoint

/ftacs-basic/ACS

WEB_TR069_DIGEST

Digest-auth TR-069 endpoint

/ftacs-digest/ACS

2.2.5. JVM

Key Description Default/Example

JAVA_OPTS

JVM heap and tuning options

'-Xms512m -Xmx2g'

2.2.6. HTTP / HTTPS / SSL

Key Description Default/Example

HTTP_PORTS

Comma-separated list of HTTP ports

8080,8181

HTTPS_PORTS

HTTPS port list

8443

SSL_KEYSTORE

Keystore path

${CONF_DIR}/ftacs.keystore

SSL_KEYSTORE_PASSWORD

Keystore password

friendly

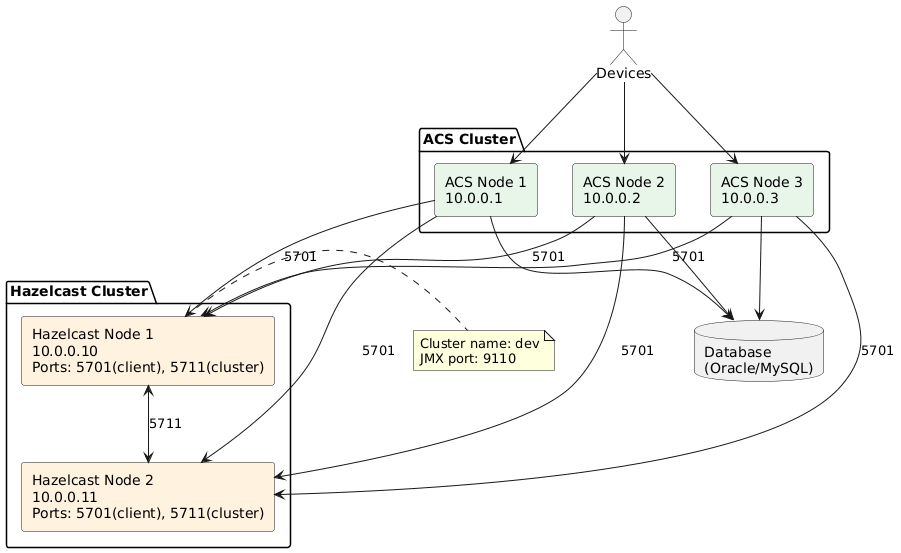

2.2.7. Hazelcast

Key Description Default/Example

HZ_MEMBERS

Hazelcast cluster member list

127.0.0.1:5701

HZ_CLIENT_CONFIG

Hazelcast client config path

${CONF_DIR}/hazelcast-client.xml

HZ_JMX_PORT

Docker/Compose: published Hazelcast JMX port on host

9110

HZ_JMX_INTERNAL_PORT

Docker/Compose: Hazelcast JMX port inside container. For FTACS_MODE=PROV use 9210

9110

2.2.8. Server Bind Address

Key Description Default/Example

FTACS_IP_ADDRESS

Bind IPv4 address for ACS protocol listeners (MQTT/USP/COAP/STOMP) and generated URLs. Used only when FTACS_IPV6_ADDRESS is empty. Address must exist in process network namespace. For Docker bridge use 0.0.0.0

(auto-detected)

FTACS_IPV6_ADDRESS

Optional bind IPv6 address for ACS protocol listeners. When set, ACS binds listeners on IPv6 only — IPv4 bind is skipped to avoid dual-stack socket conflicts on Linux. :: binds all IPv6 interfaces and accepts IPv4 traffic via IPv4-mapped addresses (dual-stack socket). Do not include square brackets. Leave unset if IPv6 is unavailable

(not set)

2.2.9. ACS Mode & Features

Key Description Default/Example

FTACS_MODE

ACS operating mode: ALL (standard), PROV (provisioning only), MNGMNT (management only)

ALL

FT_MQTT_ADDITIONAL_CONNECTOR_URI

Additional MQTT connector URI for extra binding

(not set)

FTACS_STATS_THREADS

Number of threads for statistics processing

64

FTACS_SUBSCRIPTION_PARAMETER_ONLY_VALUE_CHANGE

Send subscription events only on parameter value change (1 to enable)

0

FTACS_SUBSCRIPTION_PARAMETER_NOT_NULL_ONLY

Send subscription events only for non-null values (1 to enable)

0

2.2.10. USP X509 Certificates

Key Description Default/Example

FT_USP_X509_KEYSTORE_PATH

Path to USP X509 keystore file

(default internal)

FT_USP_X509_KEYSTORE_PASSWORD

Password for USP X509 keystore

(default internal)

FT_USP_X509_KEYSTORE_PK_PASSWORD

Password for USP X509 private key

(default internal)

FT_USP_X509_TRUSTSTORE_PATH

Path to USP X509 truststore file

(default internal)

FT_USP_X509_TRUSTSTORE_PASSWORD

Password for USP X509 truststore

(default internal)

2.2.11. MQTT X509 Certificates

Key Description Default/Example

FT_MQTT_X509_KEYSTORE_PATH

Path to MQTT X509 keystore file for TLS connections

(default from broker-config.properties)

FT_MQTT_X509_KEYSTORE_PASSWORD

Password for MQTT X509 keystore

(default from broker-config.properties)

FT_MQTT_X509_PK_PASSWORD

Password for MQTT X509 private key

(default from broker-config.properties)

FT_MQTT_X509_TRUSTSTORE_PATH

Path to MQTT X509 truststore file

(default from broker-config.properties)

FT_MQTT_X509_TRUSTSTORE_PASSWORD

Password for MQTT X509 truststore

(default from broker-config.properties)

2.2.12. MQTT and USP Settings

Key Description Default/Example

MQTT_ACTIVE_API

Comma-separated list of active MQTT API versions (e.g., api-v1,api-v2)

(default from mqtt-config.properties)

USP_SERVER_DM_PATH

Path to USP data model XML file

tr-181-2-16-0-usp-full.xml

2.2.13. Spring & Logging

Key Description Default/Example

SPRING_CONFIG_EXTRA

Extra Spring config directory passed to JVM

file:${CONF_DIR}/

LOGBACK_CONFIG

Logback XML path

${CONF_DIR}/logback-spring.xml

CXF_PATH

Apache CXF mapping path

/ACSServer-ACS

SPRING_PROFILE

Force Spring profile override (mysql / oracle)

(commented out)

FTACS_PASSWORD

Alias of DB password for convenience

${DB_PASSWORD}

QUARTZ_PASSWORD

Alias for Quartz DB password

${DB_PASSWORD}

2.3. Environment Variables Notes

  • For Oracle deployments, uncomment and adjust the ORACLE_* section and set DB_VENDOR=oracle.

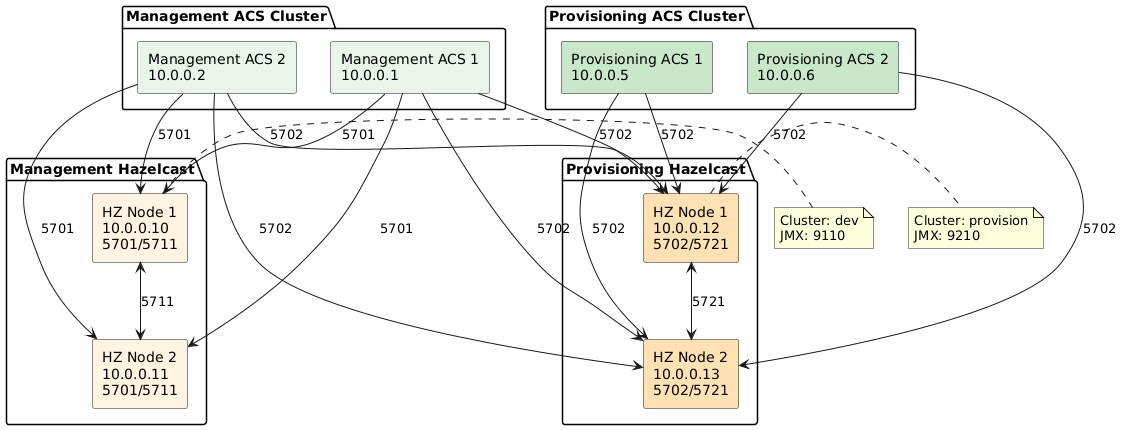

  • For FTACS_MODE=PROV in Docker/Compose deployments, set Hazelcast JMX internal port to 9210 (HZ_JMX_INTERNAL_PORT=9210). Otherwise statistics logs may contain java.net.ConnectException: Connection refused.

  • For FTACS_MODE=MNGMNT, make sure ${CONF_DIR}/hazelcast-client-prov.xml exists and points to the provisioning Hazelcast cluster.

  • Correct the variable name CLICKHOUSE_PASWORD if scripting depends on it.

  • If ACS fails with java.net.BindException: Cannot assign requested address, verify FTACS_IP_ADDRESS/FTACS_IPV6_ADDRESS are bindable in the current runtime namespace. In Docker, verify inside the container: ip addr and ip -6 addr.

  • Avoid committing real passwords; use secrets injection in CI/CD.

  • JVM options may be tuned per deployment.

3. Docker Compose Environment Files

Docker Compose deployments use a two-file environment architecture:

File Purpose Reload

.env

Per-service FTACS settings: port mapping, HikariCP pools, deployment mode, protocol config, async executors, TLS certificates, JVM

Container restart

.env.mysql / .env.oracle

Shared infrastructure: DATA_FOLDER, timezone, DB host/vendor/credentials, Hazelcast, ClickHouse, TR-069 URL mappings, host port assignments

Container restart

The .env file contains FTACS application settings independent of the database vendor. The .env.mysql / .env.oracle files contain database connection details and infrastructure hosts. Both files are loaded by compose.yml via env_file directives.

3.1. Per-Service: FTACS (.env)

File: .env
Location: Same directory as compose.yml
Reload: Requires container restart (docker compose up -d).

Contains all per-service FTACS configuration: host port mapping, HikariCP connection pool sizing, ACS deployment mode, server IP advertisement, event subscription behavior, TR-069/MQTT/USP protocol settings, X.509 certificate paths, async executor tuning, HikariCP advanced tuning, and JVM options.

Click to expand full .env
# =============================================================================
# FTACS - Core ACS Engine
# =============================================================================

# Host port exposed on the server for HTTP traffic.
# Maps to container internal port 8080 in compose.yml.
FTACS_HTTP_PORT=8080

# Host port exposed on the server for HTTPS traffic.
# Maps to container internal port 8443 in compose.yml.
FTACS_HTTPS_PORT=8443

# =============================================================================
# HikariCP Connection Pools
# =============================================================================

# Shared pool defaults (apply to all datasources unless overridden below)
DB_MAX_POOL_SIZE=10
DB_MIN_IDLE=5
DB_CONNECTION_TIMEOUT_MS=30000

# Main FTACS datasource pool. Handles CPE management, parameters,
# provisioning operations. Needs larger pool due to high concurrency.
FTACS_MAX_POOL=30
FTACS_MIN_POOL=5

# Quartz job scheduler datasource. Used for scheduled tasks persistence
# (UpdateGroup, QoE, Events). Lower load than main datasource.
QUARTZ_MAX_POOL=10
QUARTZ_MIN_POOL=2

# ClickHouse analytics datasource. Used for QoE data and statistics.
# Only active when CLICKHOUSE_HOST is configured (shared .env).
CLICKHOUSE_MAX_POOL=10
CLICKHOUSE_MIN_POOL=2

# =============================================================================
# ACS Deployment Mode
# Controls which functionality is active. Used for distributed deployments
# where provisioning and management run on separate nodes.
# =============================================================================

# ALL  = full functionality (provisioning + management) — single-node default
# PROV = provisioning only (device bootstrap, session handling)
# MNGMNT = management only (device monitoring, configuration)
# In MNGMNT mode, FTACS connects to a separate Hazelcast "provision" cluster.
# FTACS_MODE=ALL

# =============================================================================
# Server IP Address
# Advertised to CPE devices for callbacks and connection requests.
# Auto-detected from hostname if not set. Set explicitly in Docker/NAT
# environments where auto-detection returns an unreachable address.
# =============================================================================

# IPv4 bind address for ACS listeners. Used only when FTACS_IPV6_ADDRESS is empty.
# Format: dotted decimal (e.g., 192.168.1.100). For Docker bridge use 0.0.0.0.
# FTACS_IP_ADDRESS=

# IPv6 bind address. When set, IPv4 bind is skipped — `::` dual-stack socket
# accepts IPv4 traffic via IPv4-mapped addresses. Brackets added automatically.
# Format: colon-hexadecimal without brackets (e.g., 2001:db8::1 or ::)
# FTACS_IPV6_ADDRESS=

# =============================================================================
# Event Subscription Parameters
# Control when parameter change notifications are sent to subscriber URLs.
# =============================================================================

# 0 = notify on every parameter update (EACH_VALUE trigger)
# 1 = notify only when parameter value actually changes (VALUE_CHANGE trigger)
# Reduces notification volume for high-frequency polling scenarios.
# FTACS_SUBSCRIPTION_PARAMETER_ONLY_VALUE_CHANGE=0

# 0 = include all parameter values (including null/empty)
# 1 = skip notifications for null or empty parameter values
# Filters out spurious empty values during device initialization.
# FTACS_SUBSCRIPTION_PARAMETER_NOT_NULL_ONLY=0

# =============================================================================
# TR-069 Endpoint URL Mappings
# Each defines the servlet URL path for a different authentication mode.
# Multiple paths can be comma-separated.
# =============================================================================

# No authentication — CPE connects without credentials
WEB_TR069_NO_AUTH=/ftacs/ACS

# HTTP Basic Authentication (RFC 7617) — CPE sends base64(user:password)
WEB_TR069_BASIC=/ftacs-basic/ACS

# HTTP Digest Authentication (RFC 2617) — challenge-response, no plaintext password
WEB_TR069_DIGEST=/ftacs-digest/ACS

# =============================================================================
# MQTT Protocol (optional)
# Activates the embedded MQTT broker for TR-369/USP MQTT-MTP transport.
# =============================================================================

# Enable/disable MQTT protocol support (true/false)
MQTT_ENABLE=false

# Additional MQTT transport connector URI (ActiveMQ format).
# Useful for binding MQTT on a custom IP/port beyond the standard ones.
# Format: mqtt+nio://<host>:<port> or mqtt+nio+ssl://<host>:<port>
# Example: mqtt+nio://0.0.0.0:9001
# FT_MQTT_ADDITIONAL_CONNECTOR_URI=

# Active MQTT API versions. Comma-separated list.
# Incoming requests are validated against this list.
# MQTT_ACTIVE_API=api-v1,api-v2

# =============================================================================
# USP Protocol (optional)
# =============================================================================

# Path to USP data model XML specification (BBF TR-181-2 standard).
# Loaded from filesystem first; falls back to classpath resource.
# USP_SERVER_DM_PATH=tr-181-2-16-0-usp-full.xml

# =============================================================================
# X509 Certificates - USP TLS/DTLS (optional)
# Used for secure USP MTP connections (WebSocket, STOMP, CoAP over DTLS).
# Format: JKS or PKCS12 keystore files.
# =============================================================================
# FT_USP_X509_KEYSTORE_PATH=        # Server keystore with private key and certificate
# FT_USP_X509_KEYSTORE_PASSWORD=    # Keystore file password
# FT_USP_X509_KEYSTORE_PK_PASSWORD= # Private key password (if differs from keystore)
# FT_USP_X509_TRUSTSTORE_PATH=      # Truststore with trusted CA certificates
# FT_USP_X509_TRUSTSTORE_PASSWORD=  # Truststore file password

# =============================================================================
# X509 Certificates - MQTT TLS (optional)
# Used for MQTTS (MQTT over TLS) on port 8883.
# Enables mutual TLS when truststore is configured.
# =============================================================================
# FT_MQTT_X509_KEYSTORE_PATH=       # MQTT server keystore path
# FT_MQTT_X509_KEYSTORE_PASSWORD=   # MQTT keystore password
# FT_MQTT_X509_PK_PASSWORD=         # MQTT private key password
# FT_MQTT_X509_TRUSTSTORE_PATH=     # MQTT truststore path
# FT_MQTT_X509_TRUSTSTORE_PASSWORD= # MQTT truststore password

# =============================================================================
# General Async Executor (used by @Async methods without explicit executor)
# =============================================================================

# Minimum threads always running. Idle core threads are reclaimed
# after ASYNC_KEEPALIVE seconds (allowCoreThreadTimeout=true).
ASYNC_CORE=10

# Maximum threads under load. When queue=0, threads spawn immediately
# up to this limit before tasks go to an external 10,000-task overflow queue.
ASYNC_MAX=200

# Internal queue capacity before spawning new threads.
# 0 = no internal queue (SynchronousQueue); tasks spawn threads immediately.
# An external OverflowingExecutor with 10,000-task queue wraps the pool
# as a safety net, blocking on overflow to provide backpressure.
ASYNC_QUEUE=0

# Seconds an idle thread stays alive before termination.
ASYNC_KEEPALIVE=60

# Thread pool size for @Scheduled methods (virtual threads enabled).
# Handles periodic tasks: statistics flush (every 60s), counter reset (daily).
# Quartz jobs use a separate JDBC-based scheduler, not this pool.
SCHED_POOL=300

# =============================================================================
# HikariCP Tuning (optional)
# Applies to ALL three datasources (ftacs, quartz, clickhouse).
# =============================================================================

# Max time (ms) a connection can sit idle before removal. Default: 60000 (1 min)
# HIKARI_IDLE_TIMEOUT_MS=60000

# Max time (ms) to wait for a connection from the pool. Default: 45000 (45 sec)
# HIKARI_CONN_TIMEOUT_MS=45000

# Max age (ms) of a connection before forced rotation. Default: 180000 (3 min)
# Must be greater than HIKARI_IDLE_TIMEOUT_MS.
# HIKARI_MAX_LIFETIME_MS=180000

# Max time (ms) for connection validation query (SELECT 1). Default: 3000 (3 sec)
# HIKARI_VALIDATION_TIMEOUT_MS=3000

# Register HikariCP pool metrics as JMX MBeans (true/false).
# Enables monitoring via JConsole/VisualVM. Minor performance overhead.
# HIKARI_REGISTER_MBEANS=false

# =============================================================================
# JVM Options
# Passed directly to the java command. Controls heap, GC, timezone.
# =============================================================================
JAVA_OPTS=-Xms512m -Xmx2g -Duser.timezone=${TZ}

3.1.1. Host Port Mapping

Variable Description Default

FTACS_HTTP_PORT

Host port exposed for HTTP traffic. Maps to container port 8080

8080

FTACS_HTTPS_PORT

Host port exposed for HTTPS traffic. Maps to container port 8443

8443

3.1.2. HikariCP Connection Pools

Variable Description Default

DB_MAX_POOL_SIZE

Shared default — max connections per pool

10

DB_MIN_IDLE

Shared default — minimum idle connections

5

DB_CONNECTION_TIMEOUT_MS

Shared default — connection acquisition timeout (ms)

30000

FTACS_MAX_POOL

Main FTACS datasource — max connections (CPE management, provisioning)

30

FTACS_MIN_POOL

Main FTACS datasource — min idle connections

5

QUARTZ_MAX_POOL

Quartz scheduler datasource — max connections

10

QUARTZ_MIN_POOL

Quartz scheduler datasource — min idle connections

2

CLICKHOUSE_MAX_POOL

ClickHouse analytics datasource — max connections

10

CLICKHOUSE_MIN_POOL

ClickHouse analytics datasource — min idle connections

2

3.1.3. ACS Deployment Mode

See ACS Mode & Features for full description of FTACS_MODE, FTACS_IP_ADDRESS, FTACS_IPV6_ADDRESS, and subscription parameters.

3.1.4. Protocol Settings

TR-069 endpoint mappings, MQTT, and USP settings use the same variable names as app.env. See TR-069 Endpoints, MQTT and USP Settings, USP X509 Certificates, and MQTT X509 Certificates for full descriptions.

3.1.5. Async Executor Tuning

Variable Description Default

ASYNC_CORE

Core thread count for @Async executor. Idle threads reclaimed after ASYNC_KEEPALIVE seconds

10

ASYNC_MAX

Maximum threads under load. SynchronousQueue when ASYNC_QUEUE=0

200

ASYNC_QUEUE

Internal queue capacity. 0 = SynchronousQueue (immediate thread spawn). External overflow queue of 10,000 tasks wraps the pool

0

ASYNC_KEEPALIVE

Seconds an idle thread stays alive before termination

60

SCHED_POOL

Thread pool size for @Scheduled methods (virtual threads enabled)

300

3.1.6. HikariCP Advanced Tuning

Variable Description Default

HIKARI_IDLE_TIMEOUT_MS

Max idle time (ms) before connection removal

60000

HIKARI_CONN_TIMEOUT_MS

Max wait time (ms) for a connection from the pool

45000

HIKARI_MAX_LIFETIME_MS

Max age (ms) before forced connection rotation. Must be > HIKARI_IDLE_TIMEOUT_MS

180000

HIKARI_VALIDATION_TIMEOUT_MS

Max time (ms) for validation query (SELECT 1)

3000

HIKARI_REGISTER_MBEANS

Register pool metrics as JMX MBeans (true/false)

false

3.2. Shared Infrastructure (.env.mysql / .env.oracle)

File: .env.mysql (MySQL deployments) or .env.oracle (Oracle deployments)
Location: Same directory as compose.yml
Reload: Requires container restart (docker compose up -d).

Contains settings shared across all services in the Compose stack: data folder, timezone, JVM heap, Hazelcast members, database connection details, ClickHouse credentials, TR-069 URL mappings, and host port assignments for all protocols.

The .env.oracle file is a mirror of .env.mysql with: DB_HOST=oracle, DB_VENDOR=oracle, Oracle-specific variables (ORACLE_PORT, ORACLE_SERVICE, ORACLE_USER_FTACS, ORACLE_USER_QUARTZ) uncommented and active, and MySQL-specific variables (MYSQL_*) commented out.

Click to expand .env.mysql
# Common vars
DATA_FOLDER=/usr/local/ft-services
TZ=Europe/Kiev
FT_ACS_JAVA_RAM=-Xms1g -Xmx4g

# JVM tuning
JAVA_OPTS="-Xms1g -Xmx4g -Duser.timezone=Europe/Kiev"

# Hazelcast settings
HZ_MEMBERS=hazelcast:5701

# DB settings
DB_HOST=mysql
DB_PASSWORD=ftacs

# MySQL settings
DB_VENDOR=mysql
MYSQL_EXTERNAL_PORT=3306
MYSQL_PORT=3306
MYSQL_USER=ftacs

# Oracle settings
#DB_VENDOR=oracle
#ORACLE_PORT=1521
#ORACLE_EXTERNAL_PORT=1521
#ORACLE_SERVICE=XEPDB1
#ORACLE_USER_FTACS=ftacs
#ORACLE_USER_QUARTZ=ftacs_quartz

# Optional DB settings
#FTACS_PASSWORD=ftacs
#QUARTZ_PASSWORD=ftacs

# Clickhouse
CLICKHOUSE_HOST=clickhouse
CLICKHOUSE_PORT=8123
CLICKHOUSE_SCHEMA=ftacs_qoe_ui_data
CLICKHOUSE_USERNAME=ftacs
CLICKHOUSE_PASSWORD=ftacs

# === TR-069 device URLs mappings ===
WEB_TR069_NO_AUTH=/ftacs/ACS
WEB_TR069_BASIC=/ftacs-basic/ACS
WEB_TR069_DIGEST=/ftacs-digest/ACS

# === PORTS ====
ACS_MQTT=1883
ACS_USP_WS=8025
ACS_HTTP_ADDITIONAL=8181
ACS_USP_MQTT=18881
ACS_USP_BULK=18891
ACS_USP_STOMP=61617
ACS_USP_CoAP=5783
ACS_USP_WSS=4430
ACS_HTTPS=8443
ACS_MQTT_TLS=8883
ACS_USP_MQTT_TLS=18882
ACS_USP_DTLS=5784

The .env.mysql file uses corrected ClickHouse variable names (CLICKHOUSE_PASSWORD, CLICKHOUSE_SCHEMA, CLICKHOUSE_USERNAME). The compose.yml maps these to the application.yaml names (CLICKHOUSE_PASWORD, CLICKHOUSE_SCHEMA, CLICKHOUSE_USERNAME) when injecting into the FTACS container.

3.2.1. Common Settings

Variable Description Default

DATA_FOLDER

Shared data directory mounted across containers

/usr/local/ft-services

TZ

Timezone for all services

Europe/Kiev

FT_ACS_JAVA_RAM

JVM heap flags (legacy alias, prefer JAVA_OPTS)

-Xms1g -Xmx4g

JAVA_OPTS

JVM options passed to the ACS process

"-Xms1g -Xmx4g -Duser.timezone=Europe/Kiev"

HZ_MEMBERS

Hazelcast cluster member addresses (comma-separated host:port)

hazelcast:5701

3.2.2. Database Settings

Variable Description Default

DB_HOST

Database hostname (Docker service name)

mysql or oracle

DB_PASSWORD

Global DB password used for both FTACS and Quartz schemas

ftacs

DB_VENDOR

Database type: mysql or oracle

mysql

MYSQL_PORT

MySQL container port

3306

MYSQL_EXTERNAL_PORT

MySQL host-published port

3306

MYSQL_USER

MySQL database user

ftacs

ORACLE_PORT

Oracle listener port (active in .env.oracle)

1521

ORACLE_EXTERNAL_PORT

Oracle host-published port (active in .env.oracle)

1521

ORACLE_SERVICE

Oracle service name (active in .env.oracle)

XEPDB1

ORACLE_USER_FTACS

Oracle schema for FTACS (active in .env.oracle)

ftacs

ORACLE_USER_QUARTZ

Oracle schema for Quartz (active in .env.oracle)

ftacs_quartz

3.2.3. ClickHouse Settings

Variable Description Default

CLICKHOUSE_HOST

ClickHouse container hostname

clickhouse

CLICKHOUSE_PORT

ClickHouse native protocol port

8123

CLICKHOUSE_SCHEMA

ClickHouse database name

ftacs_qoe_ui_data

CLICKHOUSE_USERNAME

ClickHouse username

ftacs

CLICKHOUSE_PASSWORD

ClickHouse password (mapped to CLICKHOUSE_PASWORD in FTACS container)

ftacs

3.2.4. TR-069 URL Mappings

Same variables as app.env. See TR-069 Endpoints for full descriptions.

3.2.5. Host Port Assignments

Variable Description Default

ACS_MQTT

MQTT broker plain port

1883

ACS_USP_WS

USP WebSocket port

8025

ACS_HTTP_ADDITIONAL

Additional HTTP port

8181

ACS_USP_MQTT

USP MQTT port

18881

ACS_USP_BULK

USP Bulk Data port

18891

ACS_USP_STOMP

USP STOMP port

61617

ACS_USP_CoAP

USP CoAP (UDP) port

5783

ACS_USP_WSS

USP secure WebSocket port

4430

ACS_HTTPS

HTTPS port

8443

ACS_MQTT_TLS

MQTTS (MQTT over TLS) port

8883

ACS_USP_MQTT_TLS

USP MQTT over TLS port

18882

ACS_USP_DTLS

USP DTLS (CoAP over DTLS) port

5784

4. Logging Configuration

File: logback-spring.xml
Location: ${CONF_DIR}/logback-spring.xml
Reload: Yes — Logback auto-scans every 300 seconds (scan="true" scanPeriod="300 seconds").

Controls logging output: levels, file rotation, async appenders. Key configuration points:

  • Log directory: ${LOG_DIR} environment variable (falls back to ${APP_HOME}/logs)

  • Pattern: %d\{yyyy-MM-dd HH:mm:ss.SSS} %-5p [%c{26}] (%t) %msg%n

  • All appenders use async wrappers for non-blocking I/O

  • Rolling policy: time-based with configurable max history

To increase logging verbosity for debugging, change the relevant logger level in logback-spring.xml and wait up to 300 seconds for Logback to pick up the change (no restart needed).

5. SOAP Web Service Credentials

5.1. Users (ftacsws-users.properties)

File: ftacsws-users.properties
Location: ${CONF_DIR}/ftacsws-users.properties
Reload: Yes (hot-reloaded).

Format: username={noop}password (Spring Security NoOp password encoder).

Default: friendly={noop}linux4israel

Change the default credentials before production deployment.

5.2. Roles (ftacsws-roles.properties)

File: ftacsws-roles.properties
Location: ${CONF_DIR}/ftacsws-roles.properties
Reload: Yes (hot-reloaded).

Format: username=roleName

Default: friendly=ftacswsUser

6. Event Notification Templates

6.1. Hardcoded Event SOAP Template

File: hardcoded_event_soap_template.xml
Location: ${CONF_DIR}/hardcoded_event_soap_template.xml
Reload: Yes (hot-reloaded).

SOAP envelope template used for sending device event notifications to subscriber URLs. Contains placeholders: ${deviceId}, ${serialNumber}, ${ipAddress}, ${macAddress}, ${transactionId}, ${event}.

A Windstream-specific variant (hardcoded_event_soap_template (windstream).xml) is also available for ISP-customized event formatting.

6.2. SetParameterValues Result Template

File: set-parameter-result-template.json
Location: ${CONF_DIR}/set-parameter-result-template.json
Reload: Yes (hot-reloaded).

JSON template for SPV result subscription notifications. Placeholders: ${serial}, ${domain}, ${model}, ${taskId}, ${parameters}, ${errorcode}, ${message}.

7. SSL/TLS Keystore

File: ftacs.keystore
Location: ${CONF_DIR}/ftacs.keystore
Reload: No (requires restart).

JKS or PKCS12 keystore file containing the server certificate and private key. Used for HTTPS (port 8443) and secure protocol endpoints (MQTTS port 8883, USP WSS, USP DTLS).

Configure via environment variables:

  • SSL_KEYSTORE — path to keystore file (see HTTP / HTTPS / SSL)

  • SSL_KEYSTORE_PASSWORD — keystore password (default: friendly)

8. ACS Configuration

Core ACS runtime settings: TR-069/TR-369 behaviors, QoE monitor, authentication, session limits, STUN/XMPP, event routing, data retention, and performance safeguards.

File: acs_configuration.xml
Location: /etc/acs/acs_configuration.xml (or your deployment path)
Reload: Hot-reloaded; changes are synchronized across cluster nodes via Hazelcast.

8.1. General & ISP

Key Description Default

ispMode

0 — ISP disabled; 1 — Multi-Domain mode (domains processed by CpeAdmin); 2 — Multi-ISP mode (domains processed by the ACS)

0

enableLimitationByUser

If 1 — enable device amount limitation per each ACS user

0

enableThingsboard

If 1 — enables integration with the ThingsBoard platform

0

redirectAcsURL

URL (HTTP://IP:PORT/PATH) for redirecting CPE to management ACS. Only works in -Dftacs.mode=PROV

-

8.2. TR-069 Session & Authentication

Key Description Default

authFailedCpeHandlingMode

0 — block device if authentication fails; 1 — allow device even if authentication fails; 2 — block device and send FactoryReset RPC if authentication fails

0

useCpeSerialAsLogin

If 1 — each device must use its serial number as username to connect to the ACS; otherwise authentication fails

0

sessionInvalidateTime

When a session is completed or terminated, the device must close the TCP connection. If it does not, the ACS force-closes it after this period (seconds) since the last message from the device. Minimum: 200

200

httpSessionLimit

Concurrent TR-069 device processing session limit. 0 — unlimited

0

connectionRequestTimeout

Timeout (seconds) for a connection request. If a device fails to respond within this period, it is treated as offline. Minimum: 10

10

ignoreBootstrapExistingCPE

0 — delete device data (except pending tasks) and treat as new on "0 BOOTSTRAP"; 1 — ignore bootstrap from existing device, create empty GPN task to retrieve full tree but keep log/history; 2 — treat bootstrap from existing device as a simple inform ("2 PERIODIC")

0

createTasksForNewCPE

If 1 — auto-create initial tasks for a new device: GetRPCMethods, profile, provision data, GetParameterNames (empty), GetParameterValues and GetParameterAttributes

1

isNeedToRetrieveTreeOnFirmwareUpgrade

If 1 — when a different SoftwareVersion is discovered from a device inform or GPV, the ACS retrieves a full tree from that device

0

useEmptyRootOnGPN

If 1 — GetParameterNames RPC (tree retrieval) is sent with an empty string instead of the root object name

1

useMultipleSetTasks

If 1 — ACS batches multiple parameter values into one SetParameterValues RPC instead of one RPC per parameter. Relevant for TR devices only

1

retrieveAllParametersInOneSOAP

If 1 — ACS retrieves all requested parameters in one RPC when multiple are pending. Applies to GetParameterNames, GetParameterValues and GetParameterAttributes

1

processParametersAsync

If 1 — parameters from the device are saved asynchronously after session end; if 0 — saved synchronously before sending an empty message

1

enablePushOnMultipleInterfaces

If 1 — connection request is sent through the specific NIC that the device originally connected through (useful when ACS has multiple network interfaces)

0

8.3. Task Processing

Key Description Default

rejectedRetryCount

Number of attempts to perform a task successfully. If 1 — no retry after rejection

1

skipUGTaskProcessingIfUGTaskSentExists

If 1 — block any Group Update, Device Profile or Events task processing when another such task is already in "sent" state

1

updateGroupRandomStaticList

If 1 — random device list for Group Update is retrieved only on first iteration and reused for subsequent reactivations; if 0 — re-retrieved on each reactivation

1

blockPendingOn2StepSentExist

If 1 and device has a task requiring a new session (Download, Upload, ChangeDUState, Reboot, FactoryReset, Diagnostics, SetParameterValues with ACS URL), the ACS sends ResetSession after these tasks. Not inherited by CustomRPC tasks

0

blockPendingTillDownloadProcessing

If 1 and device has any Download-with-reset-session in sent state — no pending tasks are processed

0

overwriteProvisionParameters

0 — overwrite depends on reprovision flag (0 will not overwrite, 1/2 overwrites except flag 0); 1 — overwrite existing provision parameter and remove from provision if setCPEParams fails; 2 — same as 1 but do NOT remove from provision on failure

1

8.4. QoE Monitoring

Key Description Default

qoeMonitorMode

1 — QoE monitoring handled by a single ACS node; 2 — handled by multiple ACS nodes (cluster)

1

qoeMonitorCpeSyncDuration

For QoE-monitored devices, defines an additional period (minutes) during which the device is allowed to connect for a regular session (task processing) on top of QoE. Applies when device comes with only "2 PERIODIC" or "2 PERIODIC" + "4 VALUE CHANGE" events

1440

qoeMacStoreEnabled

If 1 — ACS retrieves and stores the MAC address for QoE-monitored devices

1

qoeMonitoringDefaultPeriod

Default QoE monitoring period (seconds). Used when the monitoring interval is NULL / empty / 0 and no pmax/pmin attributes are specified

60

qoeTruncateMonitoringParameter

If 1 — enable periodic truncation of selected monitored parameter data from the database

0

qoeTruncateInterval

Interval (hours) for removal of monitoring data of selected parameters from the database

24

enableMonitorOnGPVR

If 1 — parameter values from GetParameterValuesResponse messages are evaluated against active parameter monitorings (e.g. for triggering an event when the condition is met)

0

8.5. Whitelist

Key Description Default

whiteListEnabled

If 1 — ACS enforces a whitelist in addition to normal authentication. Devices not matching whitelist criteria are blocked even with valid credentials

0

whiteListEnabledForSensors

If 1 — whitelist check also applies to hub sensors. A sensor is blocked if its serial number is not in the whitelist

0

whiteListDisabledForExistingCpe

If 1 (when whiteListEnabled = 1) — already-registered devices are allowed to connect even if they do not match whitelist criteria

0

8.6. Event Monitoring & Routing

Key Description Default

hardcodedEventsProtocol

Event message format: SOAP, HTTP, SNMP or SYSLOG. Must be SOAP when sendToFEMS = 1 or 2

SOAP

sendToFEMS

Event message destination: 0 — WEB service; 1 — FEMS; 2 — both (primary URL must be FEMS)

2

urlForSendMonitorResult

Primary destination address (URL for FEMS/WEB or IP:port for SNMP) for event messages

-

urlForSendMonitorResultAdditional

Secondary destination address (URL for non-FEMS WEB service or IP:port for SNMP). Used when sendToFEMS = 2

-

timeoutForSendingMonitorResult

Timeout (seconds) per attempt when sending an event message. Minimum: 5

5

attempsForSendingMonitorResult

Number of attempts to send an event message

3

rangeForSendingMonitorResult

Time interval (seconds) between retry attempts for sending an event message

10

hardcodedEventMacAddressMapping

If 1 (and enableHardcodedEvents = 1), events "1116 - cpe comes with bootstrap" or "1011 - new device arrive" are sent after receiving GetParameterValuesResponse containing the mapped paths

0

onDiagnosticCompleteRetrievePath

Comma-separated list of parameter full paths for which a GPV task is sent on "8 DIAGNOSTIC COMPLETE" event when no running diagnostic is found in the database

-

8.7. STUN & Connection Request

Key Description Default

stunRedirectEnable

If 1 — STUN server is used for connection requests to relevant devices

1

stunRedirectURL

STUN server address (domain name or IP). Used when stunRedirectEnable = 1

127.0.0.1

stunRedirectPort

STUN server port number. Used when stunRedirectEnable = 1

14000

manageableCpePort

Port number on which connection request is mapped for manageable devices. 0 — disabled

0

pushRetriesOn500

Number of HTTP push retry attempts when the device returns 500 or 503

10

8.8. XMPP

Key Description Default

xmppUsername

XMPP service username

ftacs

xmppPassword

XMPP service password

ftacs

xmppServerHostAcs

XMPP server address used by the ACS

-

xmppServerHostCpe

XMPP server address used by the device. Relevant when xmppServerConnectAlgorithm = ServerTable

-

xmppServerPort

XMPP server port number. Relevant when xmppServerConnectAlgorithm = ServerTable

5222

xmppServerConnectAlgorithm

XMPP server connection algorithm: DNS-SRV or ServerTable

DNS-SRV

xmppUseSerialAsCpeUsername

If 1 — device XMPP username is its serial number; if 0 — OUI-ProductClass-SerialNumber combination is used

1

xmppUseDotForConnectionObjSet

If 1 — ManagementServer.ConnReqXMPPConnection value is sent with a trailing dot (.)

0

8.9. Statistics, License & Performance

Key Description Default

statisticsEnable

If 1 — collect performance statistics in old format; if >= 2 — write stats to database every N seconds; 0 — disabled

10

licenseCheckingPeriod

License checking interval (minutes)

60

cpuThreshold

CPU usage percentage above which the ACS blocks new session creation. 0 — disabled

0

enableRowLockProtection

If 1 — all modification operations on cpe_parameter, cpe_pending_task, cpe, cpe_next_session_time tables are synchronized through Hazelcast across all ACS nodes

1

8.10. Data Retention

Key Description Default

dataStoreDaysAmount

If > 0 — automatically delete devices whose last connection time is older than N days. 0 — disabled

0

concurrentDataStoreCleanThreads

Number of concurrent threads for deleting old device data (older than dataStoreDaysAmount days). Range: 1—​1000

10

autoDeleteCron

Cron expression defining when automatic deletion starts. See Quartz cron syntax

0 0 2 * * ?

8.11. Model-specific Overrides

Key Description Default

blockedModelList

Comma-separated ProductClass values. Inform messages (except "6 CONNECTION REQUEST") from matching devices are blocked from processing

-

typeStringModelList

Comma-separated ProductClass values. Parameter type "string" is forced in SetParameterValues RPC for matching devices

-

specificationTypeModelList

Comma-separated ProductClass values. Parameter type from TR-098 or TR-181 specification is used in SetParameterValues RPC for matching devices. Falls back to stored type if specification does not contain the parameter

-

udpPingServers

Comma-separated UDP echo ping servers (ip:port). If set, a new action task type appears in Group Update for supported models

-

8.12. ACS Configuration Sample

<FTACSConfiguration>
  <useMultipleSetTasks>1</useMultipleSetTasks>
  <hardcodedEventsProtocol>SOAP</hardcodedEventsProtocol>
  <qoeMonitorMode>1</qoeMonitorMode>
  <!-- ...more... -->
</FTACSConfiguration>

8.13. ACS Configuration Notes

  • Secure secrets (service usernames/passwords) via externalized secrets or env.

  • Align ispMode, provisioning overwrite policy, and whitelist with ops policy.

  • Review autoDeleteCron and dataStoreDaysAmount to match your retention policy.

9. Bulk Data Collection

Configures Bulk Data collection/telemetry host and per-model paths for vendors/devices.

File: bulk_data.xml
Location: /etc/acs/bulk_data.xml
Reload: Hot-reloaded; changes are automatically detected and synchronized across cluster nodes via Hazelcast.

9.1. Root Element: <bulkData>

Attribute Description Default

host

Destination URL for bulk data uploads. Supports http://, mqtt://, and usp:// schemes. For TR-069 devices the URL is rewritten to {host}/qoe/bulkDataReceiver; for USP devices to {host}/usp/bdp

(required)

external

If true — the bulk data URL is used as-is without appending the monitoring ID as a path component. If false — the monitoring ID is appended: {url}/{monitoringId}

false

username

Username for HTTP/MQTT transport authentication. Set to literal "null" to explicitly clear

-

password

Password for HTTP/MQTT transport authentication. Set to literal "null" to explicitly clear

-

9.2. Child Element: <model>

Attribute Description Default

name

Device model identifier (ProductClass). Only devices matching a listed model have bulk data collection enabled

(required)

path

Bulk data base object path override for this model (e.g., InternetGatewayDevice.X_ALU-COM_BulkData.). If omitted, defaults to InternetGatewayDevice.BulkData. for gateway devices or Device.BulkData. for non-gateway devices

auto-detected

9.3. Bulk Data Sample

<bulkData host="http://BulkDataHost:Port" external="false" username="admin" password="secret">
  <model name="G-2425G-A" path="InternetGatewayDevice.X_ALU-COM_BulkData."/>
  <model name="HG8145X6"/>
</bulkData>

9.4. Bulk Data Notes

  • Define one <model/> per supported device; omit path to use vendor defaults.

  • The host attribute supports different transport protocols depending on the URL scheme — HTTP, MQTT, and USP.

  • Removing a model from the config disables bulk data monitoring for that model.

10. CTN/RADIUS Integration

Controls CTN (Customer/Connection) enrichment from RADIUS/IPoE DB and how ACS stores/creates CTN records.

File: ctn_info.properties
Location: /etc/acs/ctn_info.properties
Reload: Hot-reloaded; changes apply without restart.

10.1. CTN Mode & Device Paths

Key Description Default

ctn.mode

0 — disabled; 1 — store CTN info from device Inform into cust_device1 table; 2 — create cust_device1 record on new/manual device if missing; 3 — both 1 and 2

0

ctn_path

TR-069 device parameter path to read the CTN value from. For non-gateway devices, InternetGatewayDevice is auto-replaced with Device

InternetGatewayDevice.DeviceInfo.CTN

l2tp_ip_path

Device parameter path for L2TP IP or hardware version. Used to obtain the IP address for RADIUS/IPoE database lookup. If empty, IP is extracted from ConnectionRequestURL

Device.DeviceInfo.HardwareVersion

mac_path

Device parameter path for MAC address extraction. Falls back to active connection name lookup if not found in Inform parameters. MAC is converted to uppercase

-

10.2. External Database (RADIUS/IPoE)

Key Description Default

ctn_search_query

SQL query template to fetch user_class by MAC/IP from external database. Use $MAC and $IP as placeholders — they are replaced with actual values at runtime. Must return a single row; result is split by : into CTN fields

(see sample)

sblripoe.connection_string

JDBC connection string to the RADIUS/IPoE database. Supports Oracle (jdbc:oracle:thin:@…​) and MySQL (jdbc:mysql://…​)

Oracle sample

sblripoe.username

Database username for external source connection

sblripoe

sblripoe.password

Database password for external source connection

sblripoe

10.3. Custom Device Table Column Mapping

Maps CTN data fields to column names in the cust_device1 table. Used in both CTN storage and QoE diagnostic enrichment.

Key Description Default

cust_device.ctn

Column name in cust_device1 for the CTN / login name value

login_name

cust_device.ip

Column name in cust_device1 for the IP address

cust1

cust_device.mac

Column name in cust_device1 for the MAC address

cust2

cust_device.alias

Column name in cust_device1 for the device alias

cust3

10.4. CTN Sample

ctn.mode=0
ctn_path=InternetGatewayDevice.DeviceInfo.CTN
l2tp_ip_path=Device.DeviceInfo.HardwareVersion
ctn_search_query=select user_class from (select mac,client_ip,user_class from sblripoe."radius_ipoe" where mac = $MAC and client_ip = $IP order by UPDATED_AT desc) where ROWNUM <= 1
sblripoe.connection_string=jdbc:oracle:thin:@(description=(address=(host=127.0.0.1)(protocol=tcp)(port=1521))(connect_data=(SERVICE_NAME=XE)))
sblripoe.username=sblripoe
sblripoe.password=sblripoe
cust_device.ctn=login_name
cust_device.ip=cust1
cust_device.mac=cust2
cust_device.alias=cust3

10.5. CTN Notes

  • Replace connection string/credentials with your DB details.

  • Test the SQL under expected load; add indexes on (mac, client_ip, updated_at).

  • CTN data is also used by QoE diagnostics to enrich reports with loginName and ipAddress.

11. External Protocol Trace

Enable and route protocol trace of ACS-CPE RPCs to an external sink (SOAP/SYSLOG).

File: external_trace.properties
Location: /etc/acs/external_trace.properties
Reload: Hot-reloaded; changes apply without restart.

11.1. Core Settings

Key Description Default

trace.url

Target HTTP endpoint for trace data. Used when trace.protocol = SOAP — the ACS sends an HTTP POST with the SOAP-wrapped message to this URL (60 s timeout)

http://127.0.0.1:8099/CpeAdmin/Login.aspx

trace.protocol

Transport protocol for trace output. SOAP — HTTP POST with SOAP envelope to trace.url; SYSLOG — writes to application log via SLF4J

SYSLOG

11.2. ACS-Originated Message Flags (trace.acs.*)

Use 0 or 1 to disable/enable per-message tracing. The file is hot-reloaded — changes apply without restart.

Key Description

trace.acs.InformResponse

Response to device Inform

trace.acs.SetParameterValues

Set parameter values RPC

trace.acs.GetParameterValues

Get parameter values RPC

trace.acs.GetParameterNames

Get parameter names RPC

trace.acs.SetParameterAttributes

Set parameter attributes RPC

trace.acs.GetParameterAttributes

Get parameter attributes RPC

trace.acs.AddObject

Add object RPC

trace.acs.DeleteObject

Delete object RPC

trace.acs.Download

Download RPC

trace.acs.Upload

Upload RPC

trace.acs.Reboot

Reboot device RPC

trace.acs.FactoryReset

Factory reset RPC

trace.acs.ChangeDUState

Change Deployment Unit state RPC

trace.acs.GetRPCMethods

Get available RPC methods

trace.acs.GetRPCMethodsResponse

Response with available methods

trace.acs.TransferCompleteResponse

Response to Transfer Complete

trace.acs.AutonomousTransferCompleteResponse

Response to autonomous transfer completion

trace.acs.DUStateChangeCompleteResponse

Response to DU state change completion

trace.acs.AutonomousDUStateChangeCompleteResponse

Response to autonomous DU state change

trace.acs.Fault

SOAP fault from ACS

trace.acs.EMPTY

Empty HTTP response (session keepalive)

11.3. CPE-Originated Message Flags (trace.cpe.*)

Key Description

trace.cpe.Inform

Device Inform message

trace.cpe.SetParameterValuesResponse

Response to SetParameterValues

trace.cpe.GetParameterValuesResponse

Response to GetParameterValues

trace.cpe.GetParameterNamesResponse

Response to GetParameterNames

trace.cpe.SetParameterAttributesResponse

Response to SetParameterAttributes

trace.cpe.GetParameterAttributesResponse

Response to GetParameterAttributes

trace.cpe.AddObjectResponse

Response to AddObject

trace.cpe.DeleteObjectResponse

Response to DeleteObject

trace.cpe.DownloadResponse

Response to Download

trace.cpe.UploadResponse

Response to Upload

trace.cpe.RebootResponse

Response to Reboot

trace.cpe.FactoryResetResponse

Response to FactoryReset

trace.cpe.ChangeDUStateResponse

Response to ChangeDUState

trace.cpe.TransferComplete

Transfer completion notification

trace.cpe.AutonomousTransferComplete

Autonomous transfer completion

trace.cpe.DUStateChangeComplete

DU state change completion

trace.cpe.AutonomousDUStateChangeComplete

Autonomous DU state change completion

trace.cpe.GetRPCMethods

CPE advertises available methods

trace.cpe.GetRPCMethodsResponse

Response with available methods

trace.cpe.Fault

SOAP fault from CPE

trace.cpe.EMPTY

Empty HTTP request from CPE

Set only what you need to minimize noise and storage.

11.4. SOAP Message Format

When trace.protocol=SOAP, each trace message is sent as an HTTP POST with headers Content-Type: text/xml; charset="utf-8" and SOAPAction: {CPE|ACS}Message:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
                  xmlns:ftacs="http://friendly-tech.com/">
  <soapenv:Header/>
  <soapenv:Body>
    <ftacs:CPEMessage>  <!-- or ACSMessage -->
      <cpeId>12345</cpeId>
      <serialNumber>ABC123</serialNumber>
      <message><![CDATA[...original SOAP XML...]]></message>
    </ftacs:CPEMessage>
  </soapenv:Body>
</soapenv:Envelope>

11.5. External Trace Sample

trace.protocol=SYSLOG
trace.acs.SetParameterValues=1
trace.cpe.Inform=1

12. FCC Compliance Testing

Tuning parameters for FCC-style speed/latency tests and WAN-usage triggered rechecks.

File: fcc.properties
Location: /etc/acs/fcc.properties
Reload: Hot-reloaded; changes are synchronized across cluster nodes via Hazelcast.

12.1. Speed Test

Key Description Default

fcc.speed.repeat

Number of speed test iterations to execute over the test window. Quartz trigger repeats the task this many times

6

fcc.speed.interval

Time interval (minutes) between consecutive speed test iterations

60

speed.success

Minimum acceptable speed as a percentage of the configured tier. Test passes if actualSpeed > tier * speed.success / 100

80

12.2. Latency Test

Key Description Default

fcc.latency.repeat

Number of latency test iterations to execute

360

fcc.latency.interval

Time interval (minutes) between consecutive latency test iterations

1

latency.success

Maximum acceptable average latency (milliseconds). Test passes if averageLatency < latency.success

100

12.3. WAN Usage Detection

Key Description Default

wan_usage.repeat

Number of retry attempts when WAN usage exceeds the configured threshold during a test

15

wan_usage.interval

Time interval (seconds) between WAN usage retry attempts

60

wan_usage.retrieve.interval

Wait time (seconds) between the first and second GetParameterValues calls for BytesSent/BytesReceived counters, used to calculate the WAN usage delta

10

12.4. FCC Notes

  • All values are integers; invalid values fall back to defaults.

  • Per-UpdateGroup overrides (total_duration, single_duration, batch_interval, retry_failed, retry_wan) can be configured in the database and take precedence over these file-based defaults.

13. Force QoE Stop

Operational switches to temporarily halt or constrain QoE monitoring behaviors for safety/maintenance.

File: force_qoe_stop.properties
Location: /etc/acs/force_qoe_stop.properties
Reload: Hot-reloaded; changes are synchronized across cluster nodes via Hazelcast.

13.1. Settings

Key Description Default

force.qoe.stop.all

Master switch — enables ALL other stop actions simultaneously. Acts as an OR condition with each individual flag

0

force.qoe.stop.requests_block

If 1 — all CPE requests bypass the QoE module entirely and are routed directly to ACS processing. QoE data capture and parameter monitoring are skipped

0

force.qoe.stop.truncate_db

If 1 — truncates the qoe_cpe_parameter table and blocks all subsequent read/write operations on monitored parameter data. If perform_tasks is not also set, clears MonitoredParameterCache

0

force.qoe.stop.perform_tasks

If 1 — during each CPE session, generates "Notification Off" tasks for all monitored parameters and restores the periodic inform interval. Removes the device from monitoring cache afterward

0

force.qoe.stop.update_monitoring_states

If 1 — marks all currently activated monitorings as "Not Active" and prevents any new monitoring from starting

0

force.qoe.stop.inform_enable_white_list

If 1 — only Inform parameters matching the whitelist fragments (plus mandatory TR-069 Inform parameters and any parameter containing "IPAddress") are saved to cpe_parameter and cpe_changed_parameter tables

0

force.qoe.stop.inform_white_list

Comma-separated parameter name fragments for substring matching. A parameter passes the filter if its name contains any listed fragment

(sample provided)

13.2. Order of Operations (when force.qoe.stop.all = 1)

  1. truncate_db: Truncates qoe_cpe_parameter table; clears cache if perform_tasks is off

  2. update_monitoring_states: Disables all activated monitorings in the database

  3. requests_block: QoE message processing skipped for all subsequent Inform messages

  4. perform_tasks: On each CPE session, generates stop-monitoring tasks and removes device from cache

  5. inform_enable_white_list + inform_white_list: Filters saved Inform parameters to whitelist only

13.3. Force QoE Stop Sample

force.qoe.stop.all=0
force.qoe.stop.requests_block=0
force.qoe.stop.truncate_db=0
force.qoe.stop.perform_tasks=0
force.qoe.stop.update_monitoring_states=0
force.qoe.stop.inform_enable_white_list=0
force.qoe.stop.inform_white_list=InternetGatewayDevice.DeviceInfo.MemoryStatus.Free, InternetGatewayDevice.LANDevice.1.Hosts.Host.3.X_ZYXEL_RSSI

Use cautiously; some options permanently delete data or disable activation while set.

14. Task Policy Configuration

Per-RPC task handling: reject timeouts, resend policies, backup attempts, and parameter download mapping.

File: ftacs_task.properties
Location: /etc/acs/ftacs_task.properties
Reload: Hot-reloaded; changes apply without restart.

14.1. Timeout-Based Task Rejection

After the ACS sends one of these RPCs, it waits for device confirmation. If the device does not respond within the configured timeout, the task is marked unconfirmed and a push is triggered to retry.

Key Description Default

reject.timeout.Download

Seconds to wait for device confirmation after a Download RPC before marking the task unconfirmed

-

reject.timeout.Upload

Seconds to wait for device confirmation after an Upload RPC before marking the task unconfirmed

-

reject.timeout.FactoryReset

Seconds to wait for device confirmation after a FactoryReset RPC before marking the task unconfirmed

-

14.2. SetParameterValues Rejection Retry

Key Description Default

reject.resend.SetParameterValues

If 1 — when a SetParameterValues provision task is rejected, the entire transaction is recreated and retried (up to rejectedRetryCount from acs_configuration.xml). If 0 — no automatic retry

0

14.3. SetParameterValues Failure Backup & Rollback

Key Description Default

failed.backup.SetParameterValues

Number of backup/restore attempts on SPV failure. If > 0 — before each SPV, a GetParameterValues "Backup" task captures current values. On failure, a "Restore" task rolls back parameters to the backed-up state. A SetValueRollBackEvent is published for monitoring. 0 — disabled

0

14.4. Download Event Mapping

Key Description Default

SetParameterValues.download.path

Comma-separated parameter paths (e.g. Device.ManagementServer.Username,Device.ManagementServer.Password). When an SPV task contains parameters matching these paths, specialized events are generated: SPVDownloadSucceeded, SPVDownloadRejected, SPVDownloadSent, SPVDownloadFailed. Paths ending with . use prefix matching; others use exact match

-

14.5. Task Policy Notes

  • All keys are optional — unspecified values disable the corresponding feature.

  • The reject.resend and failed.backup features require database tables cpe_transaction_repeats and cpe_set_param_backup.

15. Parameter Names Cache Rules

Rules for caching of parameter names (GPN) to optimize tree discovery and reduce device load.

File: parameterNamesCacheRules.yaml
Location: /etc/acs/parameterNamesCacheRules.yaml
Reload: No. Rules are evaluated at startup when the parameter name cache is populated from the database. Statistics (total / loaded / ignored) are logged.

15.1. Structure

The YAML file contains three independent filtering sections, all optional. Parameters rejected by these rules are excluded from the in-memory Hazelcast name cache at startup.

15.1.1. Blacklist & Whitelist (glob patterns)

Key Description

blacklist

List of pattern entries. Parameters matching any blacklist pattern are rejected

whitelist

List of pattern entries. If a parameter matches both a blacklist and whitelist pattern, the whitelist wins (parameter is accepted)

Pattern syntax:

  • * — matches a single path segment (one component between dots)

  • ** — matches any number of segments (any depth)

15.1.2. Instance Limits (per-position)

Key Description

instance-limits

List of rules with pattern and position-limits. Pattern uses {1}, {2}, etc. as placeholders for numbered instance positions. Each position-limit defines the maximum allowed instance number at that position. If any captured instance exceeds its limit, the parameter is rejected

15.1.3. Global Instance Limit

Key Description Default

global-instance-limit

Maximum allowed instance number across all positions in any parameter path. Any parameter containing an instance number above this value is rejected

unlimited

15.2. Decision Logic

  1. If parameter matches any blacklist pattern → mark as blacklisted

  2. If whitelist is non-empty and parameter matches any whitelist pattern → remove blacklist mark

  3. If still blacklisted → reject

  4. If global-instance-limit is set and any numeric segment exceeds it → reject

  5. If parameter matches an instance-limits pattern and any captured instance exceeds its position limit → reject

  6. Otherwise → accept

15.3. Parameter Names Cache Rules Sample

blacklist:
  - pattern: "Device.DHCPv4.Server.Pool.*.Client.*.Option.**"
  - pattern: "Device.Hosts.Host.**"
  - pattern: "Device.WiFi.AccessPoint.*.AssociatedDevice.**"
  - pattern: "Device.WiFi.DataElements.**"
  - pattern: "InternetGatewayDevice.LANDevice.*.Hosts.Host.**"

whitelist:
  - pattern: "Device.DHCPv4.Server.Pool.1.**"
  - pattern: "Device.Hosts.Host.1.**"

instance-limits:
  - pattern: "InternetGatewayDevice.LANDevice.{1}.Hosts.{2}.SomeParam.{3}"
    position-limits:
      1: 20
      2: 100
      3: 50

global-instance-limit: 1000

15.4. Parameter Names Cache Rules Notes

  • If the file is missing or empty, no filtering is applied — all parameters are cached.

  • The cache stores parameter names in Hazelcast distributed maps: CpeParameterNameIdCache, CpeParameterIdNameCache, CpeParameterIdTypeCache, and CpeParameterIdEncryptedCache.

16. Hazelcast Configuration

This section describes the architecture for deploying Hazelcast as a separate cluster from ACS application nodes. This separation provides better resource isolation, improved scalability, and enhanced reliability for production deployments.

16.1. Resource Requirements

16.1.1. Hazelcast Node Specifications

Resource Requirement

RAM

Calculate using Hazelcast formula based on cache size

CPU

Same as ACS node requirements

HDD

Same as ACS node requirements

Network

Dedicated NIC recommended (see network recommendations)

16.2. Deployment Requirements

16.2.1. Mandatory Requirements

  1. Hazelcast service must NOT run on ACS nodes — Hazelcast runs on dedicated separate servers with complete separation of concerns.

  2. Minimum number of Hazelcast nodes: 2 — high availability requirement for cluster resilience.

  3. All Hazelcast nodes must be defined in hazelcast-client.xml — ACS nodes require configuration of all Hazelcast cluster members for client connection to the entire cluster.

  4. Each ACS node connects to each Hazelcast node — client port: 5701 (default), full mesh client connectivity.

16.3. Network Architecture Recommendations

16.3.1. Network Interface Separation

Hazelcast-ACS communication should be performed through an isolated network interface, separate from device communication.

Hazelcast Node Network Configuration:

Single NIC for cluster communication:

  • NIC: Hazelcast cluster and ACS client connections only

  • No device traffic

  • No database connections

  • No UI connections

ACS Node Network Configuration:

Dual NIC setup (recommended):

  • NIC 1: Database, UI, CPE devices

  • NIC 2: Hazelcast cluster communication (isolated)

16.3.2. Network Isolation Benefits

  • Performance: Hazelcast traffic does not compete with device traffic

  • Security: Hazelcast cluster isolated from public-facing networks

  • Troubleshooting: Easier to diagnose network issues

  • Scalability: Independent bandwidth allocation

16.4. Architecture 1: Regular ACS Deployment

16.4.1. Infrastructure Components

Hazelcast Cluster:

  • Minimum 2 servers (e.g., 10.0.0.10, 10.0.0.11)

  • Dedicated Hazelcast application

  • Single cluster for all ACS data

ACS Cluster:

  • Minimum 2 servers (e.g., 10.0.0.1, 10.0.0.2, 10.0.0.3)

  • ACS application instances

  • Connect to Hazelcast cluster as clients

The number of ACS servers and Hazelcast servers do not need to be identical. Scale each tier independently based on requirements.

While 1 ACS + 1 Hazelcast configuration is possible for testing, minimum 2+2 is required for production high availability.

16.4.2. Hazelcast Configuration

hazelcast.xml (Hazelcast node):

<hazelcast>
  <cluster-name>dev</cluster-name>

  <network>
    <port auto-increment="false">5711</port>

    <join>
      <multicast enabled="false"/>
      <tcp-ip enabled="true">
        <member>10.0.0.10:5711</member>
        <member>10.0.0.11:5711</member>
      </tcp-ip>
    </join>
  </network>

  <!-- Client endpoint -->
  <network>
    <client-endpoint>
      <port>5701</port>
    </client-endpoint>
  </network>
</hazelcast>

Port Configuration:

Purpose Port Description

Server-to-server

5711

Hazelcast nodes communicate with each other

Client connections

5701

ACS nodes connect to Hazelcast cluster

jvm.options (Hazelcast node):

-Dcom.sun.management.jmxremote.port=9110

16.4.3. ACS Configuration

hazelcast-client.xml (ACS node):

<hazelcast-client>
  <cluster-name>dev</cluster-name>

  <network>
    <cluster-members>
      <address>10.0.0.10:5701</address>
      <address>10.0.0.11:5701</address>
    </cluster-members>
  </network>
</hazelcast-client>

List all Hazelcast nodes in the cluster-members section for proper failover.

16.4.4. Architecture Diagram

hazelcast-regular-deployment

16.5. Architecture 2: Provision Separation Deployment

For large-scale deployments, separate Hazelcast clusters for management and provisioning traffic.

16.5.1. Infrastructure Components

Management Hazelcast Cluster:

  • Minimum 2 servers (e.g., 10.0.0.10, 10.0.0.11)

  • Cluster name: dev

  • Handles managed device data

Management ACS Cluster:

  • Minimum 2 servers (e.g., 10.0.0.1, 10.0.0.2)

  • Connects to management Hazelcast cluster

Provisioning Hazelcast Cluster:

  • Minimum 2 servers (e.g., 10.0.0.12, 10.0.0.13)

  • Cluster name: provision

  • Handles provisioning-only data

Provisioning Hazelcast can run on the same physical servers as management Hazelcast (as a second service with different ports), but separate servers are recommended for production.

Provisioning ACS Cluster:

  • Minimum 2 servers (e.g., 10.0.0.5, 10.0.0.6)

  • Connects to provisioning Hazelcast cluster

16.5.2. Management Hazelcast Configuration

hazelcast.xml (Management Hazelcast nodes):

<hazelcast>
  <cluster-name>dev</cluster-name>

  <network>
    <port auto-increment="false">5711</port>

    <join>
      <multicast enabled="false"/>
      <tcp-ip enabled="true">
        <member>10.0.0.10:5711</member>
        <member>10.0.0.11:5711</member>
      </tcp-ip>
    </join>

    <client-endpoint>
      <port>5701</port>
    </client-endpoint>
  </network>
</hazelcast>

jvm.options (Management Hazelcast):

-Dcom.sun.management.jmxremote.port=9110

16.5.3. Provisioning Hazelcast Configuration

hazelcast.xml (Provisioning Hazelcast nodes):

<hazelcast>
  <cluster-name>provision</cluster-name>

  <network>
    <port auto-increment="false">5721</port>

    <join>
      <multicast enabled="false"/>
      <tcp-ip enabled="true">
        <member>10.0.0.12:5721</member>
        <member>10.0.0.13:5721</member>
      </tcp-ip>
    </join>

    <client-endpoint>
      <port>5702</port>
    </client-endpoint>
  </network>
</hazelcast>

jvm.options (Provisioning Hazelcast):

-Dcom.sun.management.jmxremote.port=9210

Port Allocation Summary:

Cluster Client Port Server Port JMX Port

Management (dev)

5701

5711

9110

Provisioning

5702

5721

9210

16.5.4. Management ACS Configuration

hazelcast-client.xml (Management ACS nodes):

<hazelcast-client>
  <cluster-name>dev</cluster-name>

  <network>
    <cluster-members>
      <address>10.0.0.10:5701</address>
      <address>10.0.0.11:5701</address>
    </cluster-members>
  </network>
</hazelcast-client>

hazelcast-client-prov.xml (Management ACS nodes):

<hazelcast-client>
  <cluster-name>provision</cluster-name>

  <network>
    <cluster-members>
      <address>10.0.0.12:5702</address>
      <address>10.0.0.13:5702</address>
    </cluster-members>
  </network>
</hazelcast-client>

Management ACS nodes connect to BOTH Hazelcast clusters.

16.5.5. Provisioning ACS Configuration

hazelcast-client.xml (Provisioning ACS nodes):

<hazelcast-client>
  <cluster-name>provision</cluster-name>

  <network>
    <cluster-members>
      <address>10.0.0.12:5702</address>
      <address>10.0.0.13:5702</address>
    </cluster-members>
  </network>
</hazelcast-client>

Provisioning ACS nodes connect ONLY to the provisioning Hazelcast cluster.

16.5.6. Architecture Diagram

hazelcast-provision-separation

16.6. Configuration File Location

16.6.1. Hazelcast Node

  • hazelcast.xml — Cluster configuration

  • jvm.options — JVM settings including JMX port

16.6.2. ACS Node

  • conf/hazelcast-client.xml — Primary Hazelcast client configuration

  • conf/hazelcast-client-prov.xml — Provisioning Hazelcast client configuration (if using provision separation)

In FTACS_MODE=MNGMNT, conf/hazelcast-client-prov.xml is required. If it is missing or invalid, management-to-provision synchronization is unavailable. Current backend behavior keeps startup alive in a degraded state instead of hard-failing during bootstrap.

16.7. Monitoring and Management

16.7.1. JMX Monitoring

Each Hazelcast cluster exposes JMX metrics on configured ports:

  • Management cluster: 9110

  • Provisioning cluster: 9210

In FTACS_MODE=PROV, ACS expects Hazelcast JMX on 9210. In Docker/Compose deployments set Hazelcast internal JMX port to 9210 (for example HZ_JMX_INTERNAL_PORT=9210) to avoid Connection refused errors in statistics logs.

Available metrics:

  • Cluster member health

  • Cache statistics (hits, misses, evictions)

  • Memory usage

  • Network throughput

  • Client connections

16.7.2. Health Checks

Hazelcast cluster health indicators:

  • All nodes in ACTIVE state

  • Partition migration complete

  • No missing backups

  • Client connection count

ACS client health indicators:

  • Connected to at least one Hazelcast node

  • Successful cache operations

  • Low latency for cache operations

16.8. Best Practices

16.8.1. Cluster Sizing

  1. Start with 2 nodes minimum for HA

  2. Scale horizontally as data volume increases

  3. Monitor memory usage — add nodes before reaching 80% capacity

  4. Balance load — ensure even distribution across nodes

16.8.2. Network Configuration

  1. Use a dedicated network interface for Hazelcast traffic

  2. Ensure low latency between Hazelcast nodes (< 1ms recommended)

  3. Configure adequate bandwidth for cluster synchronization

  4. Implement network redundancy where possible

16.8.3. Security

  1. Isolate Hazelcast network from device-facing networks

  2. Enable authentication in production (not shown in basic config)

  3. Use TLS/SSL for cluster communication in sensitive environments

  4. Restrict JMX access to monitoring systems only

16.8.4. Failover Configuration

  1. List all cluster members in client configuration

  2. Enable smart routing (default) for optimal performance

  3. Configure connection retry policies

  4. Set appropriate timeouts for connection and operation

16.9. Hazelcast Troubleshooting

16.9.1. Node Cannot Join Cluster

Symptoms: Node starts but remains isolated

Possible causes:

  • Network connectivity issues

  • Firewall blocking port 5711

  • Incorrect member list in configuration

  • Cluster name mismatch

Resolution:

  1. Verify network connectivity: telnet <peer-node> 5711

  2. Check firewall rules allow port 5711

  3. Verify cluster name matches across all nodes

  4. Review Hazelcast logs for connection errors

16.9.2. High Memory Usage

Symptoms: Hazelcast node consuming excessive memory

Possible causes:

  • Cache size exceeds allocated heap

  • Memory leak

  • Large objects stored in cache

Resolution:

  1. Increase JVM heap size in jvm.options

  2. Review cache eviction policies

  3. Analyze heap dump for memory leaks

  4. Consider adding more Hazelcast nodes

16.9.3. Cannot Connect to Hazelcast

Symptoms: ACS fails to start or cache operations fail

Possible causes:

  • Hazelcast cluster unreachable

  • Incorrect member addresses in client configuration

  • Firewall blocking port 5701/5702

  • Cluster name mismatch

  • Missing conf/hazelcast-client-prov.xml when running in FTACS_MODE=MNGMNT

Resolution:

  1. Verify Hazelcast cluster is running

  2. Test connectivity: telnet <hazelcast-node> 5701

  3. Check cluster name in hazelcast-client.xml matches server

  4. Review ACS logs for connection errors

16.9.4. JMX Connection Refused in PROV Mode

Symptoms: ACS logs contain java.net.ConnectException: Connection refused when collecting Hazelcast statistics

Possible causes:

  • Hazelcast JMX internal port is still 9110

  • ACS is running in FTACS_MODE=PROV and expects provisioning JMX on 9210

Resolution:

  1. Set Hazelcast internal JMX port to 9210 (for Docker/Compose: HZ_JMX_INTERNAL_PORT=9210)

  2. Optionally set published host JMX port to 9210 (HZ_JMX_PORT=9210) to keep host/internal ports aligned

  3. Restart Hazelcast and ACS services

16.9.5. Cache Operation Timeouts

Symptoms: Slow cache operations or timeouts

Possible causes:

  • Network latency between ACS and Hazelcast

  • Hazelcast cluster overloaded

  • Large data transfer

Resolution:

  1. Monitor network latency between ACS and Hazelcast

  2. Check Hazelcast cluster metrics (CPU, memory, network)

  3. Consider adding Hazelcast nodes

  4. Optimize cached data structure sizes

16.9.6. Split-Brain Scenarios

Symptoms: Cluster partitions into multiple subclusters

Possible causes:

  • Network partition between Hazelcast nodes

  • Temporary network instability

Resolution:

  1. Configure split-brain protection (quorum)

  2. Implement network redundancy

  3. Monitor cluster member status

  4. Review network infrastructure for stability

16.10. Performance Tuning

16.10.1. JVM Settings

Recommended JVM options for Hazelcast nodes:

-Xms4g
-Xmx4g
-XX:+UseG1GC
-XX:MaxGCPauseMillis=200
-XX:+ParallelRefProcEnabled
-XX:+UseStringDeduplication
-Dcom.sun.management.jmxremote.port=9110
-Dcom.sun.management.jmxremote.authenticate=false
-Dcom.sun.management.jmxremote.ssl=false

16.10.2. Network Optimization

TCP tuning for Linux:

# Increase TCP buffer sizes
net.core.rmem_max = 134217728
net.core.wmem_max = 134217728
net.ipv4.tcp_rmem = 4096 87380 67108864
net.ipv4.tcp_wmem = 4096 65536 67108864

Additional recommendations:

  • Reduce TCP retransmission timeout

  • Enable TCP keep-alive for long-lived connections

16.10.3. Cache Configuration

  1. Set appropriate eviction policies (LRU, LFU)

  2. Configure backup count (1 for HA)

  3. Tune near-cache on ACS side for frequently accessed data

  4. Monitor and adjust TTL for cached entries

16.11. Migration Guide

16.11.1. From Built-in to External Hazelcast

  1. Deploy external Hazelcast cluster (minimum 2 nodes)

  2. Configure hazelcast.xml on Hazelcast nodes

  3. Update hazelcast-client.xml on ACS nodes with cluster addresses

  4. Stop ACS instances (rolling restart recommended)

  5. Restart ACS instances — they connect to external cluster

  6. Verify cache connectivity through logs and JMX

  7. Monitor performance to ensure proper operation

16.11.2. Adding Nodes to Existing Cluster

Hazelcast node:

  1. Configure new node with same cluster name

  2. Add new node IP to existing nodes' member list

  3. Start new Hazelcast node

  4. Verify cluster membership in logs

ACS client:

  1. Update hazelcast-client.xml with new Hazelcast node address

  2. Restart ACS instances (rolling restart to avoid downtime)

  3. Verify connections to new node
