Single Emulator Mode

Single Emulator Mode provides full control over individual CPE devices — ideal for development, debugging, and protocol testing. Access it from the landing page at http://localhost:8555 or directly at http://localhost:8555/single.

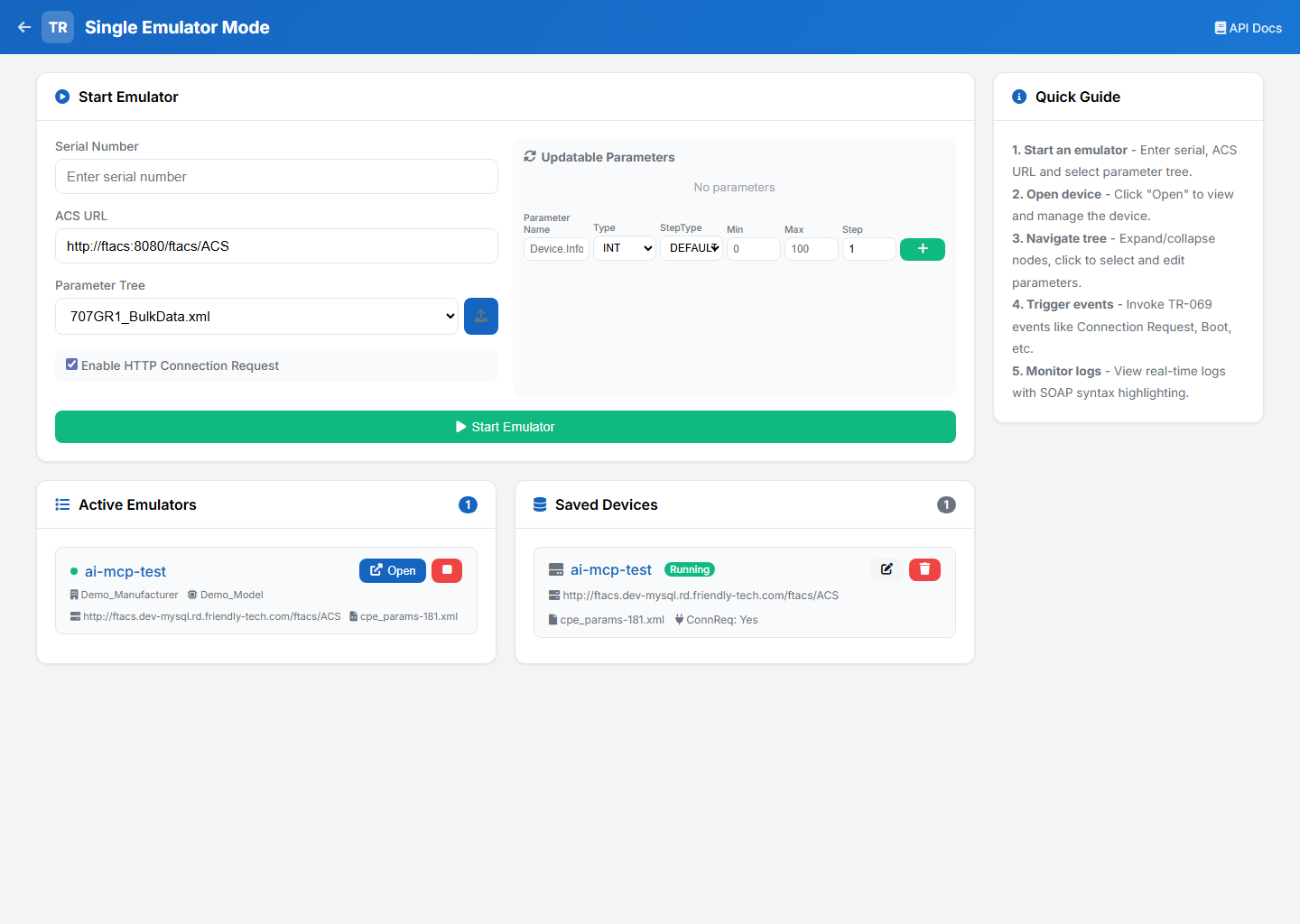

TR-069 Emulator — Single Emulator Mode

Overview

Single Mode is designed for working with one device at a time with granular control over parameters, events, and logs. For bulk device simulation, see the Load Test Mode.

Feature Single Mode

Device count

One at a time

Parameter editing

Interactive tree browser with search

Event triggering

Manual per-event selection

Log viewing

Real-time live viewer with syntax highlighting

Device persistence

Save and restore device configurations

Getting Started

These steps assume the emulator is running at http://localhost:8555. If not, see Installation — Quick Start.

  1. Open http://localhost:8555/single.

  2. In Start Emulator, enter a Serial Number, set the ACS URL (or accept the default) and pick a Parameter Tree. Tick Enable HTTP Connection Request if the ACS will initiate sessions.

  3. Click Start Emulator. The device registers with the ACS and appears under Active Emulators.

  4. Click Open on the device to inspect it: browse/edit the parameter tree, invoke TR-069 events, and watch the live log.

  5. Click Stop (in the list or the detail view) when finished. Saved configurations remain under Saved Devices for quick re-start.

Common Workflows

Inspect and edit a device’s data model

Open the device, use the Device Tree search to find a parameter, click it, then edit its Value or Notification level and Save. See Device Detail View.

Trigger a TR-069 event

Open the device, pick an event from the Invoke Event dropdown (e.g. Connection Request (6)) and click Invoke. The device starts a session with the ACS. See Device Detail View.

Watch a session in real time

Open the device and use the Live Log (auto-refreshes every 1.5 s). Click Full View for search, errors-only filtering, statistics and download. See Live Log Viewer.

Simulate realistic, changing values

Add Updatable Parameters (e.g. an increasing uptime or random signal) so the device reports changing values automatically. See Updatable Parameters.

Reuse and clone devices

Saved devices can be re-started with one click (Play), loaded back into the form for editing (Edit), or cloned to a new serial via the REST API (POST /apiV2/cloneDevice). See Saved Devices and the /apiV2 API.

Start from a base protocol tree

Use POST /apiV2/startProtocol to start a device from the canonical TR-098 or TR-181 base tree (parameterstree/base/) without selecting a specific file.

Starting a Device

The start form lets you configure a new emulator instance.

Configuration Fields

Field Description

Serial Number

Unique identifier for the emulated CPE device

ACS URL

Full URL of the Auto Configuration Server (e.g., http://acs-host:8080/ftacs/ACS)

Parameter Tree

XML file defining the device data model. Select from available files or upload a new one.

HTTP Connection Request

Enable the HTTP listener so the ACS can initiate connection requests to this device

Click Start to launch the emulator. The device registers with the ACS and appears in the Active Emulators list.

Uploading a Parameter Tree

Click the upload icon next to the Parameter Tree selector to add a custom device parameter file. The file appears in the Parameter Tree dropdown immediately after upload.

Device Detail View

Click Open on an active emulator to open the device detail modal. The modal is split into two sections:

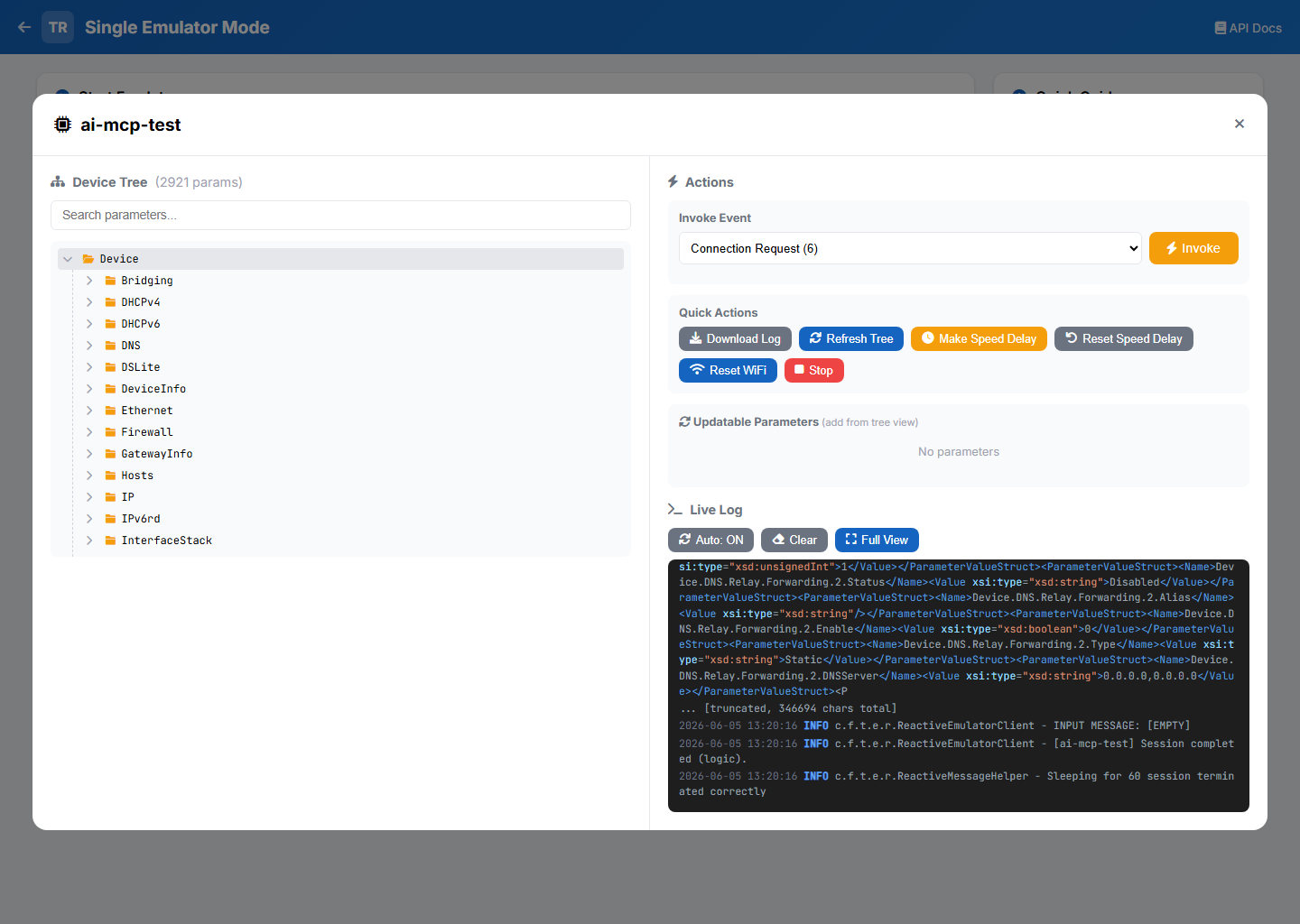

Single Mode — device detail view with parameter tree and live log

Left Panel — Parameter Tree

  • Search — Filter parameters by name in real-time

  • Hierarchical tree — Expand/collapse nodes to browse the full device data model

  • Visual indicators — Folder icons for object containers, cube icons for leaf parameters

  • Inline values — Parameter values displayed next to each node

Parameter Editor

Click any parameter in the tree to select it. The editor shows:

Control Description

Value

Editable input field for the current parameter value

Notification

Dropdown to set notification level: 0 (off), 1 (passive), 2 (active)

Save Value

Persist the modified value

Save Notif

Update the notification level

Delete

Remove a writable parameter or object instance

Add to Updatable

Add this parameter to the auto-updating list

Right Panel — Actions and Monitoring

Event Invocation

Trigger TR-069 events from the dropdown:

Event Description

BootStrap (0)

Device initialization / factory reset event

Boot (1)

Device reboot event

Periodic (2)

Scheduled inform to ACS

ValueChange (4)

Parameter changed with active notification

Connection Request (6)

ACS-initiated connection request

TransferComplete (7)

File download/upload completed

Diagnostics (8)

Diagnostics complete

Quick Actions

Button Description

Download Log

Download the full device log file (GET /apiV2/getLog)

Refresh Tree

Reload the parameter tree from the device

Make Speed Delay

Simulate network latency

Reset Speed Delay

Remove latency simulation

Reset WiFi

Reset WiFi parameters to defaults

Stop

Stop this emulator

Live Log Viewer

The compact log viewer shows the last 150 lines of device activity.

  • Auto-Refresh — Toggle automatic refresh (every 1.5 seconds)

  • Clear — Clear log output

  • Full View — Open expanded log viewer

Full Log Viewer

The expanded viewer provides advanced log analysis:

  • Configurable line cap via Max lines (1,000 / 5,000 / 10,000 / 25,000 / 50,000 / 100,000; default 5,000)

  • Real-time refresh with auto-scroll (every 2 seconds; fetches new lines incrementally)

  • Search — Free-text filtering with highlighted matches

  • Errors only — Filter to show only error/warning entries

  • Log statistics — Total lines, error count, warning count

  • Clear — Clear the viewer output

  • Syntax highlighting — Color-coded log levels and SOAP/XML content

Backed by GET /apiV2/getLogContent with incremental position tracking. The compact viewer fetches 150 lines per refresh; the full viewer fetches up to the selected cap. To save the complete log file to disk, use Download Log in the device’s Quick Actions (GET /apiV2/getLog).

Saved Devices

Device configurations are persisted for quick reuse.

  • Play (icon) — Start an emulator from the saved configuration (hidden while the device is already running)

  • Edit (icon) — Load the saved configuration back into the Start Emulator form for editing

  • Delete (icon) — Remove the saved device

Each saved device shows: Serial Number, ACS URL, Parameter File, and the HTTP Connection Request status (ConnReq: Yes/No); a Running badge appears while the device is currently active.

Updatable Parameters

Configure parameters that change automatically during emulation — useful for simulating sensor data, counters, or signal metrics.

Configuration

Field Description

Name

Full parameter path (e.g., Device.WiFi.Radio.1.Stats.BytesSent)

Type

Data type: INT or STRING (the Single Mode form offers these two; BOOL is additionally available in Load Test Mode and through the REST API)

Step Type

Update behavior: DEFAULT (no change), INCREMENT, DECREMENT, or RANDOM

Min / Max

Value range (for numeric types)

Step

Increment/decrement step size

Updatable parameters can be configured both at device start and from the device detail view for running devices.

REST API (v2)

Single Mode devices are managed through the /apiV2/ endpoints. See the Swagger UI at http://localhost:8555/swagger-ui.html for the full interactive reference, and REST API — Single Mode for the complete documented endpoint list, request/response shapes and event codes.

Key Endpoints

Method URL Description

POST

/apiV2/start

Start a device with full configuration

POST

/apiV2/stop

Stop a running device

GET

/apiV2/activeEmulators

List running devices

GET

/apiV2/storedDevices

List saved device configurations

POST

/apiV2/saveDevice

Save a device configuration

POST

/apiV2/startStored

Start from a saved configuration

GET

/apiV2/parameters

Get all parameters for a device

GET

/apiV2/parametersByPrefix

Get parameters by path prefix

POST

/apiV2/changeParameter

Modify a parameter value

POST

/apiV2/changeNotification

Set parameter notification level

POST

/apiV2/invoke

Trigger a TR-069 event

GET

/apiV2/getLogContent

Get log content with position tracking

GET

/apiV2/logStatistics

Get log line count and error/warning counts

POST

/apiV2/addObject

Add a new object instance

POST

/apiV2/deleteObject

Remove an object from the tree

POST

/apiV2/cloneDevice

Clone a device configuration with a new serial
