QA Validation Notes

At a glance

  • Add a note in Notes → + Add Note. Title + body + at least one scope field, and it’s live in Qdrant in ~3 s.

  • What it does: on the next run/reimport, the note is auto-injected into the LLM verify prompt (per segment) and the converter Stage 2 prompt (per scope match). The runner Claude can also call search_qa_notes proactively when its interact loop is stuck.

  • Severity — info / warning / known_bug.

  • Scope — be narrow. test_ids, widgets, kpi_types, topologies, or global: true for cross-cutting behaviour.

  • No webhook? Press Reindex and read the summary (added/updated/unchanged/deleted/errors).

The Notes tab is the team’s shared write-up of behavioural quirks, known backend bugs, and verify-time guidance for tests. A note written here is auto-injected at three points so the agent learns from the team without anyone editing prompts by hand:

  1. The LLM verify prompt during a run, for every step whose expected text is judged by Claude (not the deterministic verifier).

  2. The converter Stage 2 LLM prompt when a TestRail case is (re-)imported.

  3. The test-runner Claude proactively, when the interact loop is stuck or sees a suspicious widget value, via the search_qa_notes MCP tool.

If knowledge-mcp is unreachable, every injection point silently falls back to its pre-notes behaviour — a missing note never breaks a run.

What Belongs in a Note

A note describes real-world behaviour the LLM would otherwise judge wrong:

  • known_bug — backend computes a value that differs from spec, and that difference is accepted on this environment (e.g. DSC AVERAGE(12) unreachable due to integer division).

  • warning — the value is correct but flaky / off-by-±10 across runs (e.g. Monitoring widget Health flap because of CWMP cache merge).

  • info — non-obvious convention the LLM should know about (e.g. the Network topology widget renders satellite-Wi-Fi clients via the legacy AccessPoint fallback path).

A note does not replace spec docs. Spec lives in ft_docs_v2 and is already fetched by search_docs — notes layer team-authored deltas on top.

Scope — How a Note Reaches the Right Test

Each note carries a scope with up to four fields. The agent injects a note into a test only if any scope field matches OR global=true:

Field Matches when…

test_ids

the running test’s id is in the list (e.g. [C7626]).

widgets

a nav_action: widget step in the segment uses this name (case-sensitive, e.g. Monitoring, Network connected clients).

kpi_types

the test’s kpi_type matches (network, wlan, lan, wan, cellular, wifi_client, monitoring, diagnostic).

topologies

wifi_health_topo matches (accesspoint, multiap_mesh, dataelement_mesh).

global

when true, the note applies to every test — reserved for cross-cutting behaviour ("negation expectations need a 15 s stable-snapshot poll", etc.).
Be narrow. A global=true note shows up on every verify and competes with the real signal — prefer the most specific scope you can describe.

UI — Notes Tab

Open http://ai.friendly-tech.com:8083/#notes (or click Notes in the header).

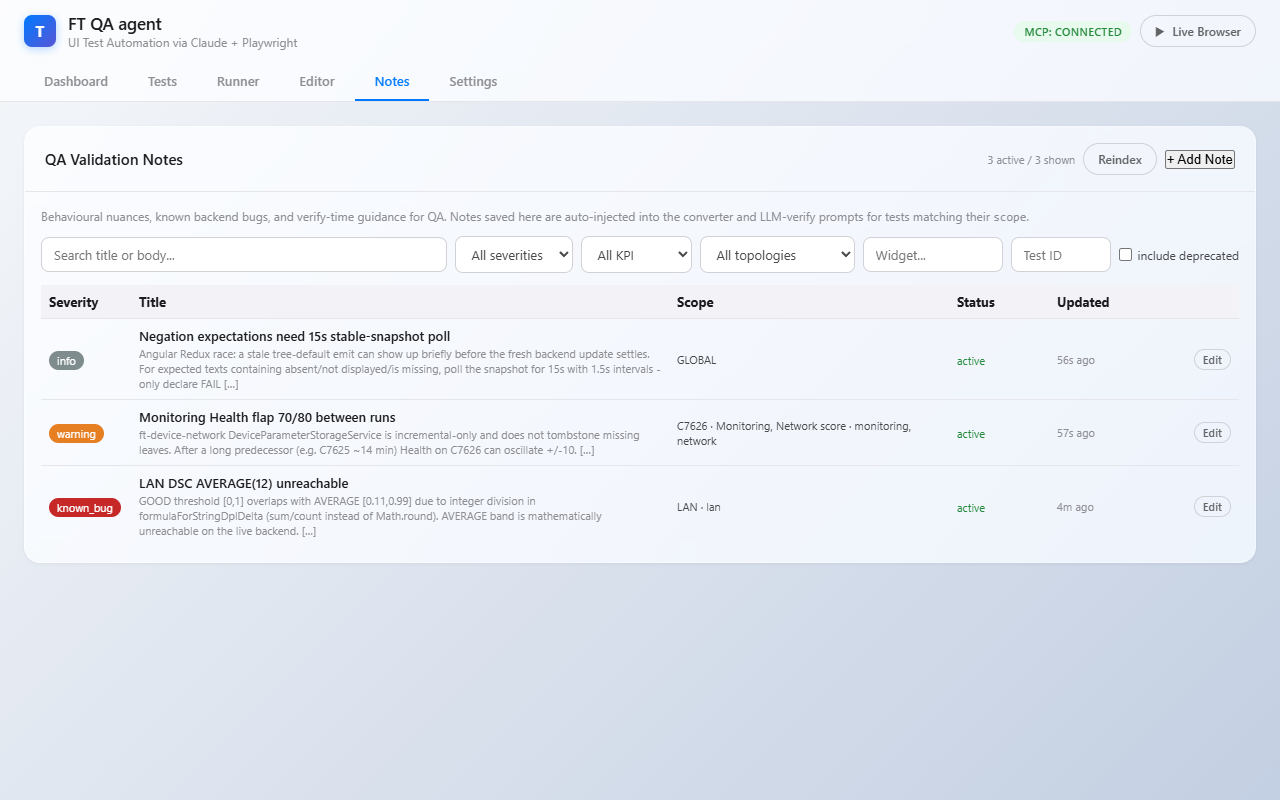

Notes tab — list view with three example notes

Toolbar

  • Search title or body… — substring filter over the in-memory list.

  • All severities / KPI / topologies — server-side scope_* filter.

  • Widget, Test ID — text filters that compare against the note’s scope fields (substring match).

  • include deprecated — by default a deprecated note is hidden; tick to show all.

  • Reindex — explicit "pull-and-reindex" trigger. See The Reindex Button.

  • + Add Note — opens the editor modal.

List view

Column Meaning

Severity

Colour pill — known_bug (red), warning (orange), info (gray).

Title

Bold title + 240-char snippet of the body.

Scope

Compact label — GLOBAL, or the comma-joined scope hits.

Status

active (green) or deprecated (gray).

Updated

Relative time (5s ago, 2h ago, 3d ago, or date).

Edit

Opens the editor modal in edit mode.

Click a row anywhere to edit.

Editor modal

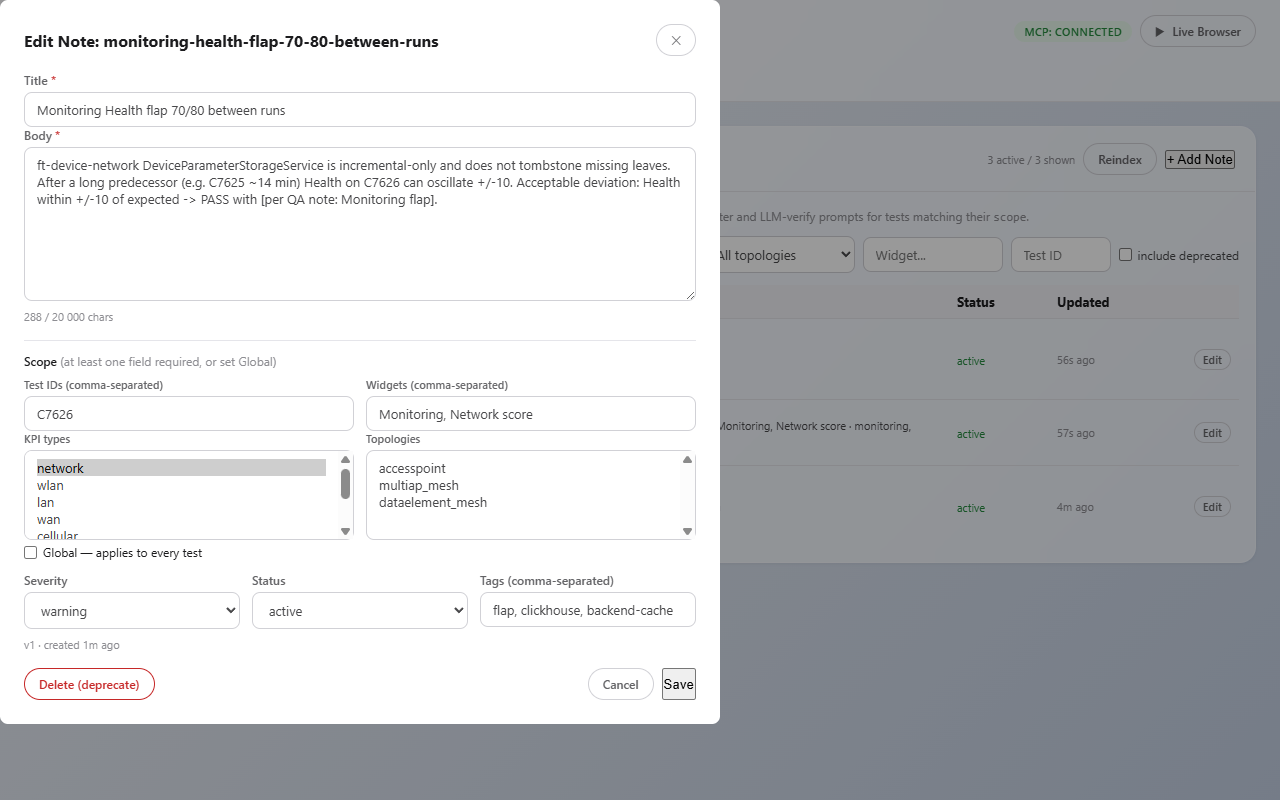

Notes editor modal — filled form
Field Notes

Title*

One-line summary. Shows up in the prompt header (e.g. "Health flap 70/80").

Body*

Full description. Up to 20 000 chars. Markdown not rendered — kept plain so the LLM does not chase emphasis markers.

Test IDs

Comma-separated case IDs (C7626, C7588).

Widgets

Comma-separated widget names (Monitoring, Network score).

KPI types

Multi-select (Ctrl/Cmd-click for multiple).

Topologies

Multi-select.

Global

When ticked, scope fields above are ignored — the note applies to every test.

Severity

info / warning / known_bug.

Status

active / deprecated.

Tags

Free-text comma-separated keywords for filtering (flap, clickhouse).

Save → atomic file write to /data/qa-notes/<id>.yaml → webhook fires → knowledge-mcp re-pulls, embeds and upserts into Qdrant. Visible in search_qa_notes within ~3 seconds.

Delete (deprecate) is soft by default — the YAML stays on disk with status=deprecated. Hard delete is available via the REST API only (DELETE /api/notes/{id}?hard=true).

The Reindex Button

Every save fires a webhook that tells knowledge-mcp to re-pull. Reindex is the safety net for when the webhook didn’t take effect:

  • knowledge-mcp was down during a save — the YAML lives on the volume but is missing from the Qdrant index.

  • You imported a batch of notes via curl / a migration script and want to push them all in one call instead of N webhooks.

  • You changed KNOWLEDGE_MCP_REST_URL / KNOWLEDGE_ADMIN_TOKEN and want to validate the new wiring.

  • You just want the summary — the response shows added=X updated=Y unchanged=Z deleted=W errors=E so you can see what the index thought of your YAMLs.

Day-to-day there is no need to press it — the webhook keeps everything in sync.

Pipeline

UI Save  ──► POST /api/notes
              │
              ├── atomic write /data/qa-notes/<id>.yaml
              │
              └── background webhook
                    │
                    └── POST knowledge-mcp:7030/admin/refresh-notes
                          │
                          └── QaNotesIndex.refresh()
                                ├── GET test-runner:8083/api/notes/raw
                                ├── (id, version, payload-hash) diff
                                ├── embed changed via embedding-service-v2
                                └── upsert / drop into Qdrant ft_qa_notes

Run / Reimport
   │
   ├── converter Stage 2          (when scope matches test_id / kpi / topo)
   │       └── _build_qa_notes_section()  ─► search_qa_notes ─► backend_ctx
   │
   ├── LLM verify (per nav segment)
   │       └── _fetch_qa_notes_block()    ─► search_qa_notes ─► prompt block
   │
   └── test-runner Claude (interact loop)
           └── mcp__knowledge__search_qa_notes   (proactive, when stuck)

Source of Truth

/data/qa-notes/<id>.yaml on the qa-notes named volume mounted into test-runner-agent. The Qdrant collection ft_qa_notes is a derived index — wipe it and Reindex rebuilds it from the YAML files.

The YAML layout matches what POST /api/notes accepts plus a few auto-managed fields:

id: c7626-monitoring-flap
title: "Monitoring widget Health flap 70/80"
body: |
  ft-device-network DeviceParameterStorageService is incremental-only,
  so the Health value can flap by ±10 between runs when ClickHouse is
  not purged before BootStrap.
  Acceptable deviation when verifying C7626 Health: ±10 → PASS.
scope:
  test_ids: [C7626]
  widgets: [Monitoring, Network score]
  kpi_types: [monitoring, network]
  topologies: []
  global: false
severity: warning
status: active
tags: [flap, clickhouse, backend-cache]
version: 3
created_by: armen.malkhasian
created_at: 2026-05-17T10:00:00Z
updated_at: 2026-05-17T10:14:32Z
version is bumped on every PUT. PUT /api/notes/{id} accepts an expected_version field for optimistic locking — pass the version you read; the server returns 409 Conflict if it changed under you.

How a Note Appears in Prompts

Verify prompt (Phase 4)

The agent prepends a section to the LLM verify prompt before the "VERIFY each step" instruction block:

PRIOR QA NOTES (consider before declaring FAIL):
- [WARNING] Monitoring widget Health flap 70/80: ft-device-network...
These describe what REALLY happens on the live backend, written by QA.
If a note lists an acceptable deviation that matches the observed value,
mark the step PASS with a brief `[per QA note: <title>]` annotation...

The LLM is told to cite the note by title when it relaxes a verdict, so the report stays auditable.

Converter prompt (Phase 5)

Stage 2 LLM enrichment receives a section after the existing Spec / TR-181 context:

## QA Validation Notes (team-authored, prefer over priors)
[WARNING] Monitoring widget Health flap 70/80
ft-device-network DeviceParameterStorageService...

Bumping the converter cache version (_CONVERSION_CACHE_VERSION in scripts/test_server.py) is what forces every cached YAML to be re-converted with the latest notes context on the next reimport. The operator does this when a note is significant enough that older YAMLs should reflect it; day-to-day notes don’t require a bump.

Proactive interact loop (Phase 6)

mcpknowledgesearch_qa_notes is in the runner Claude’s allowed-tools glob. The system prompt tells it to call the tool when:

  • the interact loop is stuck on the same step for >2 iterations;

  • a widget shows an unexpected value (Health=0, score=N/A, ±10 flap);

  • a negation expectation didn’t pass the first snapshot;

  • a dialog / dropdown behaves differently from the snapshot;

  • verify just failed and the observed value is "close" to the expected one.

REST API

See REST API → QA Validation Notes for the full endpoint reference. The summary:

Method Path Purpose

GET

/api/notes

List with severity, scope_*, q filters.

GET

/api/notes/{id}

One full note.

GET

/api/notes/raw

All notes incl. deprecated — internal pull path used by knowledge-mcp.

GET

/api/notes/_meta/options

Severity / status / KPI / topology allowlists (drives UI dropdowns).

POST

/api/notes

Create. Auto-derives id from title if not passed.

PUT

/api/notes/{id}

Full replace; bump version. Optional expected_version for optimistic lock.

DELETE

/api/notes/{id}[?hard=true]

Soft-deprecate by default. ?hard=true removes the file.

POST

/api/notes/reindex

Manual webhook trigger to knowledge-mcp. Returns the refresh summary.

Environment Variables

Variable Used by

QA_NOTES_DIR

test-runner. Defaults to /data/qa-notes. Where notes live on the volume.

KNOWLEDGE_MCP_REST_URL

test-runner. Defaults to http://ai.friendly-tech.com:7030. Webhook target.

KNOWLEDGE_ADMIN_TOKEN

test-runner and knowledge-mcp. Must match on both — auths /admin/refresh-notes calls. Empty disables the endpoint (503).

QA_NOTES_SOURCE_URL

knowledge-mcp. Defaults to http://ai.friendly-tech.com:8083/api/notes/raw. Where the index pulls from.

QA_NOTES_COLLECTION

knowledge-mcp. Qdrant collection name. Defaults to ft_qa_notes.

Bootstrap on a Fresh Environment

If you stand up a new Qdrant cluster:

# Idempotent — creates the collection + 9 payload indexes
QDRANT_URL=http://your-qdrant:6333 python tmp/create_qa_notes_collection.py

The QaNotesIndex will also auto-create the collection on first refresh (without payload indexes), so the script is optional but recommended for production deployments — payload indexes are what make scope_* filters fast.

Troubleshooting

Symptom Diagnosis

Note saved but search_qa_notes returns empty

Press Reindex and read the summary — errors > 0 means embedding / Qdrant failed. Check knowledge-mcp health and KNOWLEDGE_ADMIN_TOKEN matches on both stacks.

/admin/refresh-notes returns 503

KNOWLEDGE_ADMIN_TOKEN is empty on knowledge-mcp. Set it in Portainer stack env, redeploy.

/admin/refresh-notes returns 401

Tokens differ between test-runner and knowledge-mcp. Sync them.

Reindex summary shows fetched: 0

knowledge-mcp can’t reach QA_NOTES_SOURCE_URL. Verify the URL works from inside the knowledge-mcp container (cross-stack DNS / firewall).

Note shows up in /api/notes but not in verify prompts

Scope mismatch. Either widen the scope (broader kpi_types / topologies / global=true) or check that the test’s kpi_type and wifi_health_topo are set in the YAML (look at the converter output).

Old YAMLs were converted before a known_bug note existed and still contain stale parameters

Reimport the affected cases. The converter only re-runs when the idempotency cache says inputs changed. Toggle Force refresh in the TestRail modal, or set force_refresh=true on the /api/testrail/reimport endpoint. Bumping CONVERSION_CACHE_VERSION invalidates _every cached entry on the next reimport — reserve this for breaking notes.
